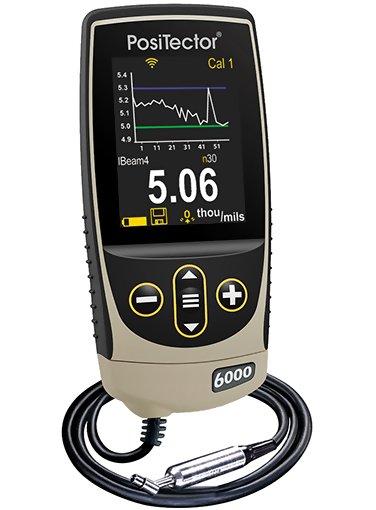

DeFelsko PosiTector 6000 F45S3 Coating Thickness Gage for ferrous metal substrates (0-1150 um, Ferrous)

  • Manufacturer: DEFELSKO
    Model: 6000 F45S3
    • Request a Quotation Request a Quotation
  • 32,312,500 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment



Manufacturer: DeFelsko-USA
Origin: USA





Warranty: 12 months

Order Code: F45S3 (Advanced)

- Probe: Ferrous

Non-Magnetic coat-ings on FerrousMetals (Steel & Iron)

- Range: 0-1150 um (0 - 45 mils)

- Accuracy:

  ±(0.5 µm + 1%) 0 – 100 µm

  ±(2 µm + 3%) > 100 µm

- Hi Contrast reversible color LCD

- Storage of 100,000 readings in up to 1,000 batches and sub-batches

- Onscreen help, real time graphing, picture prompting and more

- Batch annotation—add notes and change batch names with onscreen

QWERTY keyboard

- WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates and connects with mobile devices for expanded functionality

- Data transfer via USB to a PC or via Wireless Technologyto a PC or printer

- Scan mode—take continuous readings without lifting the probe

- Multiple stored calibration adjustments for measuring on a variety

of substrate conditions

- SSPC PA2 feature determines if film thickness over a large area conforms to user-specified min/max levels

- PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings

- Size: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

- WEIGHT: 140 g (4.9 oz.) without batteries

complete with Standard: gage body, F probe, precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, download software PosiTector.net

Detail

Literature

Instruction Manual

Option

1. Metal Plates S series Epoxy on Steel (4): STDS1, STDS2, STDS3

2. Metal Plates  Epoxy on Steel: STDA1, STDA2, STDA3

3. Metal Plates Zero Plates: Steel – STDZSTL, Aluminum – STDZALM

4. Metal Plates Individual Plates: Miscellaneous thicknesses available

5. Certified Plastic Shim Set: STDCSS (8 shims)

6. Individual Certified Shims

7. Non-Certified Shim Set

8. Bluetooth Printer for use with

9. PosiTector 6000/200/DPM/SPG/UTG for Advanced models only

10. IR Printer for use with PosiTector PC 3 additional rolls of printer paper

11. Probe Foot Rings (2)for PosiTector 6000 FS, FRS, FTS, NS, NRS, FNS, FNRS separate probes only

12. Protective Lens Shields (5)or PosiTector 6000/200/DPM/SPG/UTG only

13. Rechargeable Battery Pack 4 AAA eneloop batteries for PosiTector 6000/200/DPM/SPG/UTG only

14. AC Power Kit for PosiTector series
