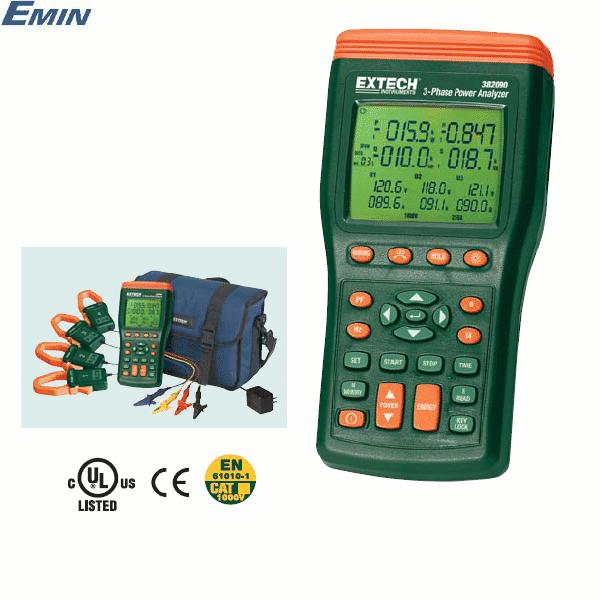

Extech 382091 3-Phase Power Analyzer/Datalogger (50 Hz) (1000A)
Manufacturer: EXTECH Model: 382091 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
|
General |
|
|
ACV (True rms) |
999.9V ±(0.5%rdg+10d) |
|
ACA |
1000A ±(1%rdg+15d) |
|
Active Power (kW) |
999.9kW ±(1.5%rdg+20d) |
|
Apparent Power (kVA) |
999.9kVA ±(1.5%rdg+20d) |
|
Reactive Power (kVAR) |
999.9kVAR ±(1.5%rdg+20d) |
|
Power Factor |
-1.000 to +1.000 ±(3%rdg+30d) |
|
Frequency |
60Hz to 100Hz ±(0.5%rdg+1d) |
|
Phase |
+90.0°~ 0°~ -90.0° ±3° |
|
Active Power Energy (kWh) |
0.0kWh to 119.3MWh ±(1.5%rdg+20d) |
|
Apparent Power Energy (kVAh) |
0.0kVAh to 119.3MVAh ±(1.5%rdg+20d) |
|
Reactive Power Energy (kVARh) |
0.0kVARh to 119.3MVARh ±(1.5%rdg+20d) |
|
Harmonics |
1 to 31 (with the software) ±(1.5%rdg+20d) |
|
Datalogging |
20,000 reading |
|
Dimensions |
9.25 x 4.5 x 2.1" (235 x 116 x 54mm) |
|
Weight |
Meter: 25.8oz (730g); Clamp: 11.8oz (333g) |
Complete with 4 current clamps, 4 voltageleads with alligator clips, 8 AA batteries, AC adaptor, software, PC interface cable, and case
Manufacturer: Extech - U.S.A
