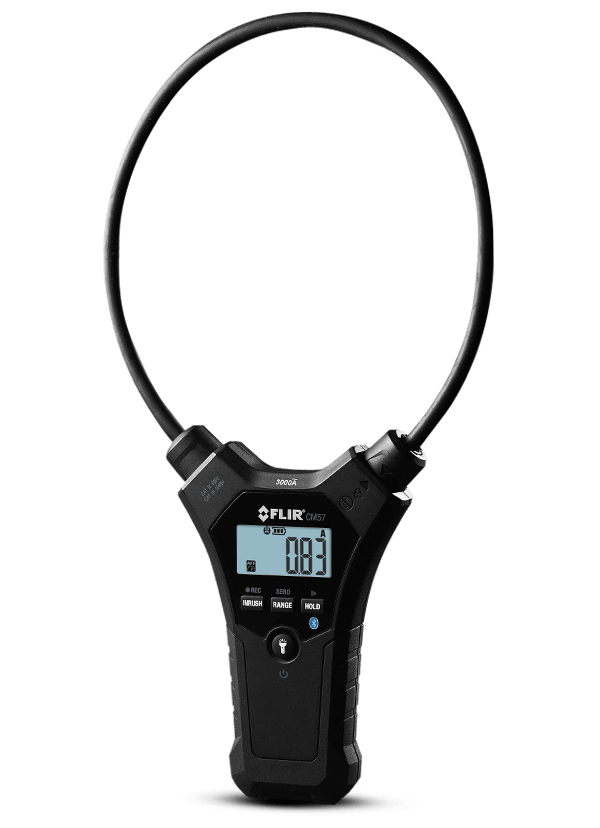

FLIR CM57 Flexible Clamp Meter (3000A, True RMS)

  • Manufacturer: FLIR
    Model: CM57
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • 5,287,500 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: FLIR
Model: CM57
Origin: Taiwan
Warranty: 12 months

- Maximum AC current: 3000A
- AC response: True RMS
- AC current ranges and resolution: 30.00A, 300.0A, 3000A
- Basic AC current accuracy(of reading): ± 3.0% + 5 digits
- Maximum resolution: 0.01A
- AC current bandwidth: 45Hz – 500Hz (sine wave)
- Inrush current: Min 0.5A, 100mS
- Data record mode: 20,000 points , 1 min sample rate
- Positional error(distance from optimum)
1.4” (35mm) ±1.0%
2.0” (50mm) ±1.5%
2.4” (60mm) ±2.0%
- Display: 3000 count LCD with backlight and multi‐function indicators
- Max conductor diameter: 4.7" (12cm)
- Flex coil length: 18" (45 cm)
- Flex coil diameter: 0.3" (7.5mm)
- Flex coil tip diameter: 0.5" (13mm)
- Worklight: Two white LEDs
- Bluetooth range max: 32' (10m)
- Wireless ID# max: Up to 20
- Power supply: (2) 1.5V “AAA”
- Drop test: 9.8' (3m)
- Agency approvals: FCC Class B, CE, UL
- Safety rating: CAT IV 600V, CAT III 1000V
- Standards: EN61010-1, EN61010-2-032, EN61326-1
