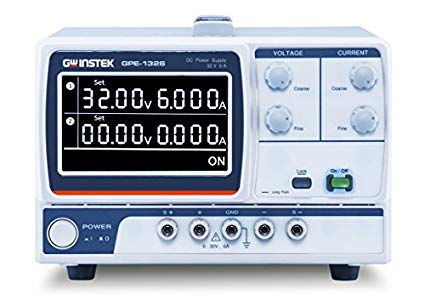

GW instek GPE-1326 Linear D.C. Power Supply (32V, 6A, Single Channel,192W) High Resolution

  • Manufacturer: GW INSTEK
    Model: GPE-1326
    • Request a Quotation Request a Quotation
  • 7,167,500 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Model: GPE-1326
Warranty: 12 months
Manufacturer: Gwinstek - Taiwan
Origin:  China

Meter
Voltage Resolution  10mV
Current Resolution  1mA
Setting Accuracy
Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Readback Accuracy
Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Constant Voltage Operation
Regulation  ≦0.01%+3mV
Load Regulation  ≦0.01%+3mV(rating current ≦3A)
≦0.02%+5mV(rating current >3A)
Ripple & Noise  ≦1mVrms(5Hz~1MHz)
Recovery Time  ≦100μs(50% Load Change, minimum load 0.5A)
Constant Current Operation
Regulation  ≦0.2%+3mA
Load Regulation  ≦0.2%+3mA
Ripple & Noise  ≦3mArms
Analog Control Interface (Remote I/O)
V / I Check key
4.3 Inch LCD Display
Power Source: AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
Dimensions & Weight  210(W)x 155(H) x 306(D) mm ; Approx. 7kg
Accessories :
User Manual (CD) x 1 ; Power Cord x 1
Test Lead GTL-104 x 1 ; GTL-105 x 1 ; or European GTL-204A x 1, GTL-203A x1
