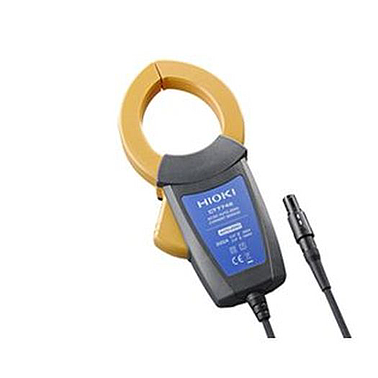

HIOKI CT7742 AC/DC AUTO-ZERO CURRENT SENSOR 2000A

  • Manufacturer: HIOKI
    Model: CT7742
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Model: CT7742

Manufacture: Hioki

Made in: Japan

Warranty: 12 months

Rated measurement current:   2000 A AC/DC

Max. measurement current:     2000 A

(requires derating at frequency)

Max. allowable peak input      2840 A peak

Bandwidth:     DC to 5 kHz (-3dB)

Typical accuracy:        ±2.3 deg. (DC < f ≤ 66 Hz)

Output rate:     0.1 mV/A

Max. rated voltage to earth:    AC/DC 600 V (CAT IV)

AC/DC 1000 V (CAT III)

Core diameter:            φ 33 mm (1.30 in) or less

Output connectors:     HIOKI PL 14

Dimensions and mass: 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length :2.5 m (8.20 ft)



Accessories:None
