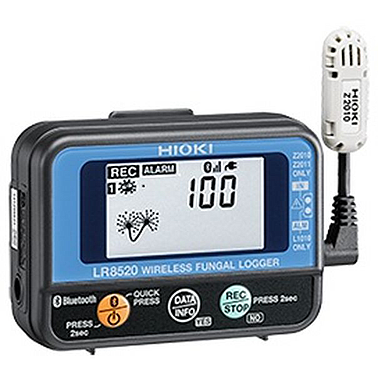

HIOKI LR8520 WIRELESS FUNGAL LOGGER

  • Manufacturer: HIOKI
    Model: LR8520
    Origin: Japan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Hioki
Model: LR8520
Origin: Japan
Warranty: 12 months

Number of channels: 1 temperature channel + 1 humidity channel (HUMIDITY SENSOR Z2010 or HUMIDITY SENSOR Z2011 is required (sold separately))
Display items    Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels)
Measurable range
- Temperature: -40˚C to 80˚C, Range 100˚C f.s., Max. resolution 0.1˚C
- Humidity: 0% rh to 100% rh, Range 100% rh f.s., Max. resolution 0.1% rh
Measurement accuracy: (using Z2010/Z2011)
- Temperature: ±0.5 ˚C (10˚C to 60˚C)
  Outside temperature range: Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C)
- Humidity ±3% rh (20˚C to 30 ˚C, 20% rh to 90% rh)
Control up to 7 units, Communication distance: 30 m
Can use with app from Google Play
Other functions    Measurement: value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function
Recording: 500,000 data items for each channel
Power supply: AC ADAPTER Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) × 2, External power DC5 V to 13.5 V (can also be supplied from USB bus power via a conversion cable)], 3.5 months maximum
Dimensions and mass: 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.3 oz) (Not including the battery)
Accessories: CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) × 1, Measurement Guide × 1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) × 2 , CONNECTION CABLE L1010 ×1


Detail

■ Basic specifications

Supported instrument [Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Download app from Google Play)
*Communication range varies with the performance of the computer or tablet
(up to a line-of-sight distance of roughly 30 m)
[Used as unit (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m
Number of channels 1 temperature channel + 1 humidity channel (HUMIDITY SENSOR Z2010 or HUMIDITY SENSOR Z2011 is required (sold separately))
Display items Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels)
Measurable range [Temperature] -40˚C to 80˚C, Range 100˚C f.s., Max. resolution 0.1˚C
[Humidity] 0% rh to 100% rh, Range 100% rh f.s., Max. resolution 0.1% rh
Measurement accuracy (using Z2010/Z2011) [Temperature] ±0.5 ˚C (10˚C to 60˚C)
If outside above temperature range:
Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C)
[Humidity] ±3% rh (20˚C to 30 ˚C, 20% rh to 90% rh)
Other functions Measurement value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function
Recording [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 sec to 30 sec, 1 min to 60 min, 14 selections
Power supply AC ADAPTER Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) × 2, External power DC5 V to 13.5 V (can also be supplied from USB bus power via a conversion cable)
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) 3.5 months (Recording interval of 1 min, Bluetooth® OFF)
20 days (Recording interval of 1 sec, Bluetooth® ON)
5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410)
Dimensions and mass 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.3 oz) (Not including the battery)
Accessories CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) × 1, Measurement Guide × 1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) × 2 , CONNECTION CABLE L1010 × 1

■ Countries and regions where wireless operation is currently supported

Countries, regions Japan, USA, Canada, EU, Norway, Switzerland, Turkey, Russia, Vietnam, India, Thailand, Australia, New zealand, Chile, and Singapore.
