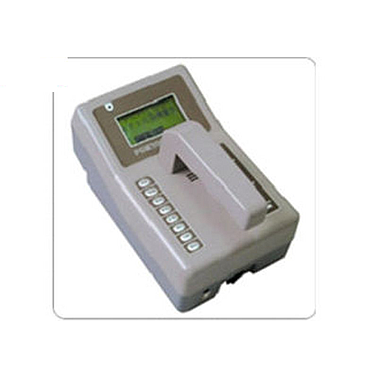

HUATEC HCM-100 Handheld Contamination Monitor Of X-Ray Flaw Detector (α β γ )

  • Manufacturer: HUATEC
    Model: HCM-100
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Huatec
Model: HCM-100
Origin: China

- α β γ contamination
- cps,Bq,Bq/cm2 optional
- Three kinds of testing mode, single, continuous and smoothness
- Continuous adjustment of alarm value, sound and light alarm
- Data memory, record of stored memory, real time clock
- Fault display
- Lithiumrecharble battery
- USB port
- Lattice LCD
- Backlight
- Can write scale factor, area, smoothness factor
- Continuous adjustment of time clock
- 8 keys, controlling of measurement, backlight, alarm, 4 multi-function keys.
- Low voltage display
- Alarm of outrange, alarm of GM tube block
Techincal features
- Detector:end window counter tube 3pcs
- Sensitive area:45cm2 (15 cm2×3)
- Radiation type:α,β,γ
- Measuring type:gross count,cps,degree of activityBq,Bq/cm2
- Measuring rage:0.1-105 cps,0.1-104 Bq,0.1-103 Bq/cm2
- Lower limit of energy: α 2.5 MeV β 30 keV  γ 5 keV
- Efficiency:
  ≥40%(2π)according to 90Sr
  ≥40%(2π)according to 14C,239Pu
  ≥40%(2π)according to 2 04T
  ≥30%(2π)according to 239Pu
- 9V recharble battery, working time >100 hours
- Working temperature: 0 - 45℃
- Humidity: 90%
- Volume:226 mm×140 mm×88 mm
- Weight:1.8 kg
