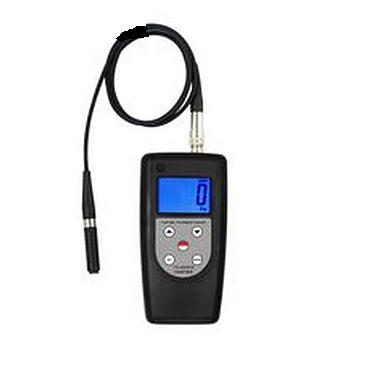

HUATEC TG-2200CN Portable Eddy Current Coating Thickness Tester Gauge Bluetooth / USB Data

  • Manufacturer: HUATEC
    Model: TG-2200CN
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Manufacturer: Huatec
Model: TG-220CN
Made in China

The TG-2200CN measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Features Details Accessories
- Specially for the thickness measurement of coating on small work piece.
- Measuring methods:  eddy current (N).
- Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the coating - thickness of curved objects and tiny objects.)
- Metric/imperial system selectable.
- Manual or automatic shut down.
- Auto memory of calibration value, and auto recognize the substrate.
- Operation process have buzzing reminder, while no buzzing in continuous mode.
- Use “USB data output” and “RS-232 data output” to connect with PC.
- Provide “Bluetooth data output” choice.
Separate Type can provide several type probe, measure can be more flexibility.


 Operating Principle

  Eddy Current (NF)

  Measuring Range

  0~200 um / 0~8 mil

  Resolution

  0.1 um

  Min. Radius Workpiece

  convex 2 mm / concave 4 mm

  Min. Measuring Area

  2 mm

  Min. Sample Thickness

  0.1 mm

  Accuracy

  ± 1~3%n or ± 2.5 um

  Auto Power Off



  Metric / Imperial

  Convertible

  Battery Indicator

  Low Battery Indicator

  Operating Conditions

  Temp. 0~40 °C, Humidity: 10~90 %RH

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery

  Dimensions

  140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

  Weight

  215 g (Not Including Batteries)



Standard Accessories:
 1.  Main Unit
 2.  Probe (NF Type)
 3.  Calibration Base Set (NF Type)
 4.  Calibration Foils (1 set, 4 pieces)
 5.  Carrying Case
 6.  Operation Manual

Optional accessories:
 1. USB, RS-232C data cable with software
 2. Bluetooth data out put with software
