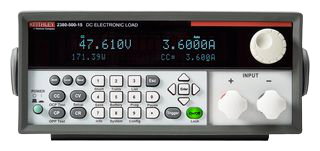

Keithley Programmable DC Electronic Loads 2380-500-15 (500V, 15A, 200W)

  • Manufacturer: KEITHLEY
    Model: 2380-500-15
    • Request a Quotation Request a Quotation
  • 48,175,000 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Model: 2380-500-15
Manufacture : Tektronix
Warranty: 12 months
Origin: Taiwan

Rated Value
(0°–40°C)
Input Voltage 0–500 V 0–500 V
Input Current 0–3 A 0–15 A
Input Power 200 W 200 W
Min. Operating
Voltage 0.6 V at 3 A (maximum 0.9 V) 4.5 V at 15 A
Constant Voltage Mode
Range 0.1–50 V 0.1– 500 V
Resolution 1 mV 10 mV
Accuracy ±(0.05% + 0.025% FS) ±(0.05% + 0.025% FS)
Constant Current Mode
Range 0–3 A 0–15 A
Resolution 0.1 mA 1 mA
Accuracy ±(0.05% + 0.05% FS) ±(0.05% + 0.05% FS)
Constant Resistance Mode
Range 0.3 Ω–10 Ω 10 Ω–7.5 kΩ
Resolution 0.001 Ω 0.1 Ω
Accuracy 2 0.01% + 0.08 S 0.01% + 0.0008 S
Constant Power Mode
Range 200 W 200 W
Resolution 10 mW 10 mW
Accuracy 0.1% + 0.1% FS 0.1% + 0.1% FS
Measuring Range
Readback Voltage
Range 0–50 V 0–500 V
Resolution 1 mV 10 mV
Accuracy ±(0.025% + 0.025% FS) ±(0.025% + 0.025% FS)
Readback Current
Range 0–3 A 0–15 A
Resolution 0.01 mA 0.1 mA
Accuracy ±(0.05% + 0.05% FS) ±(0.05% + 0.05% FS)
Readback Power
Range 200 W 200 W
Resolution 10 mW 10 mW
Accuracy ±(0.1% + 0.1% FS) ±(0.1% + 0.1% FS)
Dimensions 214.81mm × 104.24mm × 397.03mm
Net Weight: 4.65kg.
Accessories Supplied
Quick Start Guide
Documentation CD
Power cord
ACCESSORIES AVAILABLE
2380-001 9-pin Rear Panel Mating Connector
2380-002 DUT Connection Protective Cover
7007-2 Double-Shielded Premium IEEE-488 Interface
Cable, 2m (6.5 ft)
KP-CL-488LPA IEEE-488.2 Interface Board for the PCI Bus
USB-B-1 USB Cable, Type A Connector to Type B
Connector, 1m (3.3 ft)
RACK MOUNT KITS FOR THE 2380-500-15 AND
THE 2380-120-60
4299-7 Universal Fixed Rack Mount Kit
RMU2U Fixed Rack Mount Kit
386759800 RMU2U Rack Mount Cosmetic Filler Panel
RACK MOUNT KIT FOR THE 2380-500-30
2380-RM Full-Rack-Width Instrument Fixed
Rack Mount Kit
