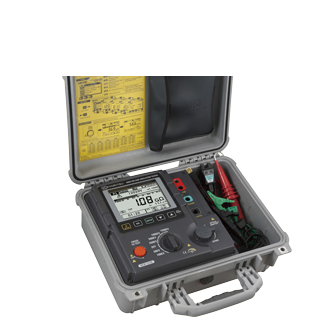

KYORITSU 3128 High Voltage Insulation Tester (12kV/35TΩ)

  • Manufacturer: KYORITSU
    Model: 3128
    • Request a Quotation Request a Quotation
  • 97,635,000 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Kyoritsu
Model: 3128
Made in: Japan
Warranty: 12 months

1) Measurement of insulation resistance
Test voltage: 500V/1000V/2500V/5000V10000V/12000V
Resolution resistance measurement: 500GΩ/1TΩ/2.5TΩ/35TΩ
Accuracy: ± 5% rdg | ± and ± 20% rdg 3dgt depending on resolution
Short circuit current: 5mA
2) the output voltage
Power voltage: 500V/1000V/2500V/5000V10000V/12000V
Accuracy: 0 ~ +20%
Solutions chosen:
  50 ~ 600V (step 5V),
  610 ~ 1200V (10V step),
1225 ~ 3000V (25V step)
3050 ~ 6000V (50V step)
6100 ~ 10000v (step 100V)
12000V 10100 ~ (100 V step)
3) Measure the voltage
Power voltage: DCV: ± 30 ~ ± 600V,
                     ACV: 30 ~ 600V (50/60Hz)
Accuracy: ± 2% rdg
4) Measure the flow: 0 to 2.4mA
5) Measure the capacitor
Suppose measurements: 5nF ~ 50uF
Accuracy: ± 5% rdg
Power: 12V battery
Size: 330 (L) × 410 (W) × 180 (D) mm
Accessories:
+ 7170 (Main cord),
+ 7224A (Earth cord),
+ 7225A (Guard cord),
+ 7226A (line probe),
+ 7227A (Line probe with alligator clips),
+ 8029 (Extension prod)
+ 8212-USB-W
