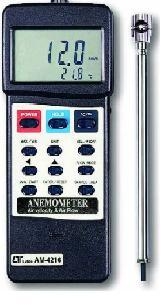

Lutron AM4216 Anemometer-Mini Vane (12m/s, 999,900m3/min, 80℃)

  • Manufacturer: LUTRON
    Model: AM4216AVM03
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

* 13 mm dia heavy duty mini vane with telescope probe available for high temp. air velocity measurement.



* Air flow : CMM (m^3/min.) and CFM (ft^3/min.)


- Wind speed measuring range: 4 units
m / s 0.8 - 12.00 m / s 0:01 m / s ± (2% +0.2 m / sec)
km / h 2.8 - 43.2 km / h 0.1 km / h ± (2% +0.2 km / h)
mile / h 1.8 - 26.8 mile / h 0.1 mile / h ± (2% +0.2 mile / h)
knots 1.6 - 23.3 knots ± 0.1 knots (2% +0.2 knots)
ft / min 160 - 2358 ft / min 1 ft / min ± (2% +20 ft / min)
Wind flow around
+ CMM (m3/min) 0 to 999.900 (m3/min) 0 001 -100 0001 to 9.999 m2/phut
+ CFM (ft3/phut) from 0 to 999.900 (ft3/phut) -100 0001 0001 to 9.999 ft2/phut
- Temperature measurement range: 0.0 to 80.0oC; 0.1oC; +0.8 oC
32.0 to 176oF; 0.1oF; +1.5 o


* Air velocity : m/s, ft/min, km/h, knots.



* Air temperature : ℃, ℉.



* 3 air flow mode : Instant, 2/3 Vmax, Average.



* Low-friction ball vane wheels is accurate in both high & low velocities.



* Large LCD with dual display.



* Record max. and min. reading value.



* Data hold.



* Microcomputer circuit.



* Thermistor sensor for temp. measurement, fast response time.



* RS 232 PC serial interface.



* Separate probe, easy for operation of the different measurement environment.

Warranty: 12 months
Manufacturer: Lutron - Taiwan



Detail

- Results of measurement displayed by LCD screen
- Operating Environment: Temperature 0 - 50 ° C, humidity: <80% RH
- Power: one 9V Alkaline battery operation for 75 hours
- Dimensions: 157 x 78 x 35 mm, probe: max 600mm
- Weight: 381gam
Supply includes:
+ Gauge wind speed and electron temperature is the model AM4216
+ Sensor to measure wind speed, air volume and temperature by van with a long 3m cord
+ 01 9V battery, carrying machine
+ Guide
