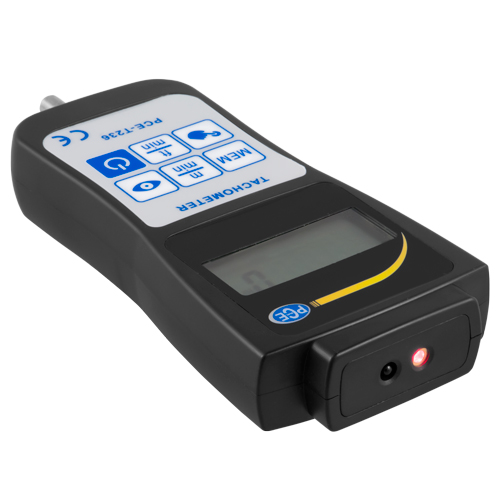

PCE-T236 Handheld Tachometer (Contact and non contact)

  • Manufacturer: PCE
    Model: PCE-T236
    Origin: China
    • Request a Quotation Request a Quotation
  • 3,263,499 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: PCE UK

Warranty: 12 months



Measurement range for velocity






5 to 99999 rpm (optical)
0.5 to 19999 rpm (contact)
0.05 to 1999 m/mim (contact)
0.2 to 6560 ft/min (contact)

Resolution 0.5 to 999.9 = 0.1 rpm;
up to 99999 = 1.0 rpm (optical)
0.5 to 999.9 = 0.1 rpm;
up to 19.999 = 1.0 rpm (contact)
0.05 to 99.99 = 0.01 m/min;
up to 1999 = 0.1m/min (contact)
0.2 to 999.9 = 0.1 ft/min;
up to 6560 = 1 ft/min (contact)
Accuracy

±0.05% of reading; ±1 digit

Maximum distance for optical measurements 300mm
Memory last value, maximum and minimum value
Power 4 AA batteries
Operating temperature 0 to 50°C
Enclosure ABS plastic
Display 5 digit LCD, turns automatically depending on the type of measurement
Dimensions 65 x 215 x 38mm
Weight 300g

Delivery Contents:

1 x PCE-T236 handheld tachometer

1 x Conical mechanical attachment

1 x Cylindrical mechanical attachment

1 x Measuring wheel mechanical attachment

1 x Roll of laser-reflective tape

1 x Carrying case

1 x User manual
