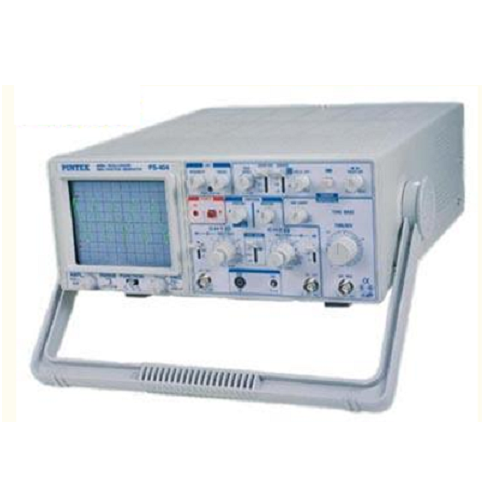

Pintek RS-608 Analog Oscilloscope ( 60MHz With Cursor Readout )

  • Manufacturer: PINTEK
    Model: RS-608
    • Request a Quotation Request a Quotation
  • 20,304,000 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

CURSOR READOUT FUNCTION
1mV/DIV SENSITIVITY.
10nS/DIV RESLUTION.
CE, TUV GS. UL, CUL, IEC101
Manufacture : Pintek - Taiwan
Origin : Taiwan

Detail

CRT:
Type :
Rectangular with integral graticule.
Display Area :
8 x 10 div ( 1 div = 1 cm )
Accelerating Voltage :
12kV.
Phosphor : P31.
VERTICAL AMPLIFIERS ( CH 1 and CH 2 )
Sensitivity : 5 mV / div to 5 V / div ( X1 mode ).
                   1 mV / div to 1 V / div ( X5 mode ).
                   1-2-5 sequence, 10 step attenuator.
                   Vernier control provides fully adjustable
                   attenuation between steps.
Accuracy :
± 3 % ( X1 mode );± 5 % ( X5 mode ).
Input Resistance:
1 MΩ ± 2 %.

Input Capacitance:
25 pF ± 10 pF.
Frequency Response:

5 mV to 5 V / div ( CAL ):DC to 60 MHz (-3 dB).
1 mV / div (CAL):DC to 20 MHz (-3 dB).

Rise Time:Approximately 5.8 ns.
Operaing Modes:

CH1: CH 1, single trace.
CH2: CH 2, single trace.
ALT: Dual trace, alternating.
CHOP: dual trace, chopped.
ADD: algebraic sum of CH 1 + CH 2.

Polarity Reeversal (Invert):
CH 2 only.
Maximum Input Voltae:
400 V dc + ac peak.
Maximum Undistorted Amplitude:

DC-to-60 MHz: 4 divisions.
DC-to-40 MHz: 8 divisions.
HORIZONTAL AMPLIFIER( Input through channel 1 input )
X-Y mode:
switch selectable using X-Y switch.
CH 1: X axis.
CH 2: Y axis.

Sensitivity:
1mv/div to 5v/div

Accuuacy:

Y-Axis: ± 3%.
Y-Axis: ± 6%.

Input Impedance:
1MΩ ± 2% //25PF
Frequency Response:DC to 1 MHz typical ( -3 dB ).

X-Y Phase Difference:
Approximately 3° at 50 kHz.
Maximum Input Voltage:400v dc+ac pack
SWEEP SYSTEM
Sweep Speed:
0.1 μs/div to 0.5 s/div in 1-2-5 sequence, 21
steps.
??????? ?? ??  Vernier control porvides fully adjustable sweep time
????????? ? ?  between steps.

Accuracy:
± 3 %.

Sweep Magnification:
10X, ± 10%
Holdoff:
Continuously adjustable from NORM to 5 times normal.
TRIGGERING
Trigger Modes:
AUTO ( free run ) or NORM.

Trigger Source:
CH1, CH2, ALT, EXT, LINE.
Maximum External Trigger Voltage:
300 V dx + ac peak.
Trigger Coupling:

AUTO ( AC ): 30 Hz to 80 MHz.
TV-H ( AC ): Used for triggering from horizontal sync pulses.
TV-V ( DC ): Used for triggering from vertical sync pulses.
READOUT FUNCTION-Panel setting desplays
Vertical axis ( CH1, CH2 ) : V/DIV,UNCAL,
                                          MAG ( Converted Value)
Horizontal axis : S/DIV, UNCAL, MAG ( Converted Value)
-Cursor readout function

Voltage difference △ V :to REF
Time difference △ T :
to REF
Frequency diference 1/ △ T: 1/1 △
to REF 1
NOTE: When the X-Y mode, △ V is
           changed to △ X and △ T to △ Y.

-Cursor measurement resolution : 1/25 DIV

-Effective cursor range from center graticule
Vertical : within ± 3 DIV
Horizontal : within ± 4 DIV
OTHER SPECIFICATIONS
Calibrating Voltage:
1 kHz ( nominal ) Positive Square
                                Wave, 0.5 V p-p ( ± 3% )

Trace Rotage:
Electrical, front panel adjustable.
Power Requirements:
115/ 230 VAC ± 10%, 50/60Hz ,
                                  approximately 60 W.

Dimensions:
324 x 132 x 398 mm ( 12.8 x 5.2 x 15.6" ).
Weight:
Approximately 8.5 kg ( 18.7 1bs ).
