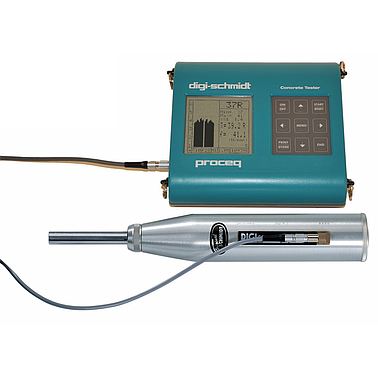

Proceq DigiSchmidt ND Concrete Test Hammer (2.207Nm)

  • Manufacturer: PROCEQ
    Model: DigiSchmidtND
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Proceq
Model: DigiSchmidt ND
Warranty:12 month

- Applications
+ Schmidt Hammer Type ND: Suitable for use on concrete components of 100 mm (3.94 in.) thickness or more
+ Schmidt Hammer Type LD: Suitable on concrete components of thickness less than 100 mm (3.94 In.) or on cast stone material
+ Both versions of the Schmidt Hammer are ideally suited for systematic high volume measuring and the detection of weak spots in the concrete as well as for the control of uniform concrete quality
- Technical Data
Impact energy: 2.207 Nm
Measuring range: 10 - 70 N/mm2
Concrete compressive strengtgth: 1450 - 10152 psi
Display Unit: graphic LCD-Display 128 x 128 pixel
Internal data storage: non-volatile memory, 250 measurement series of 10 measurements each
Communication: RS 232 or with adapter to USB
PC application    ProVista
Battery type: six LR6 (AA) batteries, 1.5 V for 60 h operation
Operating temperature: 0 °C to +60 °C
Storage temperature: -10 °C to +60 °C
- Accessories: Test hammer, Display unit, RS232 interface, Data transfer cable, Grinding stone, Carrying strap, Operating instructions, and carrying case.
