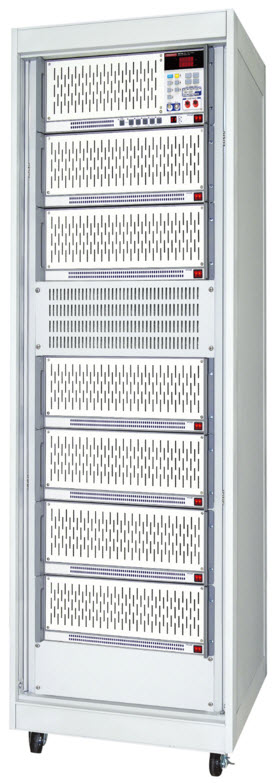

Prodigit 32616A AC & DC Electronic Load (12600VA,126Arms,300Vrms)

  • Manufacturer: PRODIGIT
    Model: 32616A
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 32616A
Warrantly: 12 months

Power: 12600VA
Current: 126Arms
Voltage: 50~300Vrms
Protections:
  Over Power Protection: 13230VA
  Over Current Protection: 132.3A
  Over Voltage Protection: 315V
  Over Temp Protection: 85
CC mode:
  Range: 0~63A/63~126A
  Resolution: 15.75mA/31.5mA
  Accuracy: ±0.5%
  Low Current Accuracy: 0~6.3A
CR mode:
  Range: 0.476~1.904Ω/1.904~7.616KΩ
  Resolution: 0.525mS/0.131mS
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 300V, ±0.5%
  Current : 126A, ±0.5%
  Power : 12600W, ±0.5%
Dimension (HxWxD): 1778x596x600mm
Weight: 230.5 kg
Input: 115/230Vac, 50/60Hz
