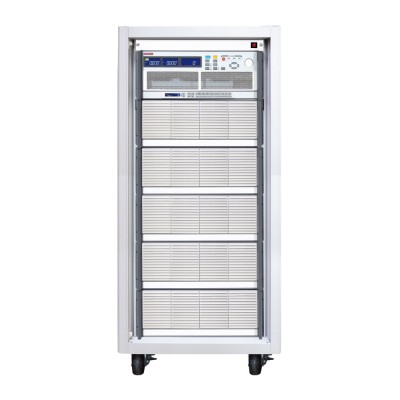

Prodigit 33515F High Power DC Electronic Load (10800W,720A,60V)

  • Manufacturer: PRODIGIT
    Model: 33515F
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 33515F
Warrantly: 12 months

Power: 10800W
Current: 0~720A
Voltage: 0~60V
Min.Operation Voltage: 0.6V@720A
CC mode:
   Range: 0~72A/720A
   Resolution: 1.2mA/12mA
   Accuracy:    ±0.1%
CR mode:
   Range: 0.00138~0.083~5KΩ
   Resolution: 0.0014mΩ/0.2mS
   Accuracy:    ±0.2%
CV mode:
   Range: 6V/60V
   Resolution: 0.1mV/1mV
   Accuracy:    ±0.05%
CP mode:
   Range: 1080W/10800W
   Resolution: 18mW/180mW
   Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 6V/60V, ±0.025%
  Current : 0 ~ 72A/720A, ±0.1%
  Power : 0 ~ 10800W, ±0.125%
Protections:
  Over voltage: 105%
  Over current: 105%
  Over power: 105%
  Over temp.: Yes
Short circuit current: 720A
Dimension (HxWxD): 1556 x 596 x 600 mm
Weight: 208.6 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
