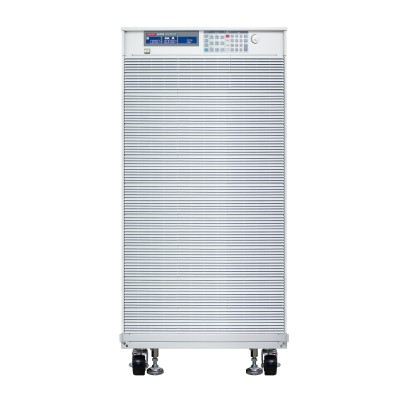

Prodigit 34335A Compact High Power DC Electronic Load (35KW,35A/350A,1000V)

  • Manufacturer: PRODIGIT
    Model: 34335A
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 34335A
Warrantly: 12 months

Power: 35KW
Current: 0~35A/0~350A
Voltage: 0~1000V
Min.Operation Voltage: 10V@350A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 35A/350A
  Resolution: 0.56mA/5.6mA
  Accuracy: ±0.1%
CR mode:
  Range: 3428.4~2.857Ω/2.857~0.0288Ω
  Resolution: 5.84uS/0.048mΩ
  Accuracy: ±0.2%
CV mode:
  Range: 10~1000V
  Resolution: 16mV
  Accuracy: ±0.05%
CP mode:
  Range: 3500W/35000W
  Resolution: 56mW/560mW
  Accuracy: ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 35A/35~350A, ±0.1%
  Power : 3500W/35000W, ±0.125%
Short circuit current: 350A
Dimension (HxWxD): 1353 x 647 x 766 mm
Weight: 390 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
