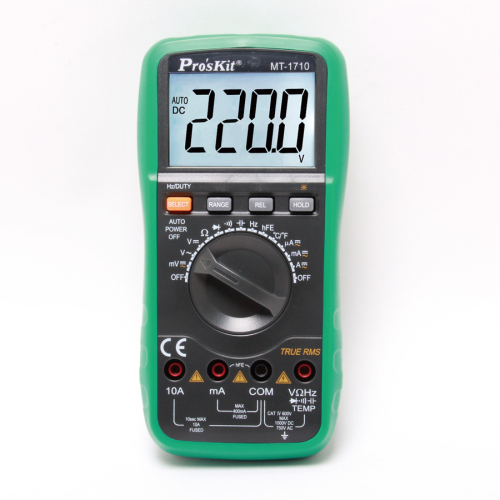

Proskit MT-1710 3-3/4 True-RMS Auto Range Multimeter

  • Manufacturer: PROSKIT
    Model: MT-1710
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • 750,000 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Proskit
Model: MT-1710
Made in : Taiwan
Warranty: 12 Months

DC Voltage(V):400m/4/40/400V ±(0.5%+4d)
1000V ±(1.0%+6d)
AC Voltage(V)True-RMS:
40~1kHz(sine and triangular wave)
and 40~200Hz(other wave):400mV ±(1.6%+8d)
4/40/400/750V ±(1.0%+10d)200~1kHz(other wave):
400m/4/40/400/750V ±(8.0%+15d)
DC Current(A):400u/4000uA ±(1.0%+10d)
40m/400mA ±(1.2%+8d)10A ±(1.2%+10d)
AC Current (A) True-RMS
40~1kHz(sine and triangular wave)
and 40~200Hz(other wave):
400u/4000u/40m/400mA ±(1.5%+10d)
10A ±(2.0%+15d)200~1kHz(other wave):
400u/4000u/40m/400m/10A ±(8.0%+15d)
Resistance (Ω):400Ω ±(0.8%+5d)
4k/40k/400k/4MΩ ±(0.8%+4d)40MΩ ±(1.2%+10d)
Frequency (Hz):100/1000/10k/100kHz ±(0.5%+10d)
1M/30MHz ±(0.5%+10d)
Capacitance (F):10n ±(5.0%+20d)
100n/1u/10u/100uF ±(3.5%+8d)1/10/100mF ±(5.0%+10d)
Temperature (℃/℉):-20~400℃ (-4~752℉) ±(1.0%+5d)
400~1000℃ (752~1832℉) ±(1.5%+15d)
Power source:9V (NEDA 1640/6F22) battery
Size (mm):190×95×45 mm
