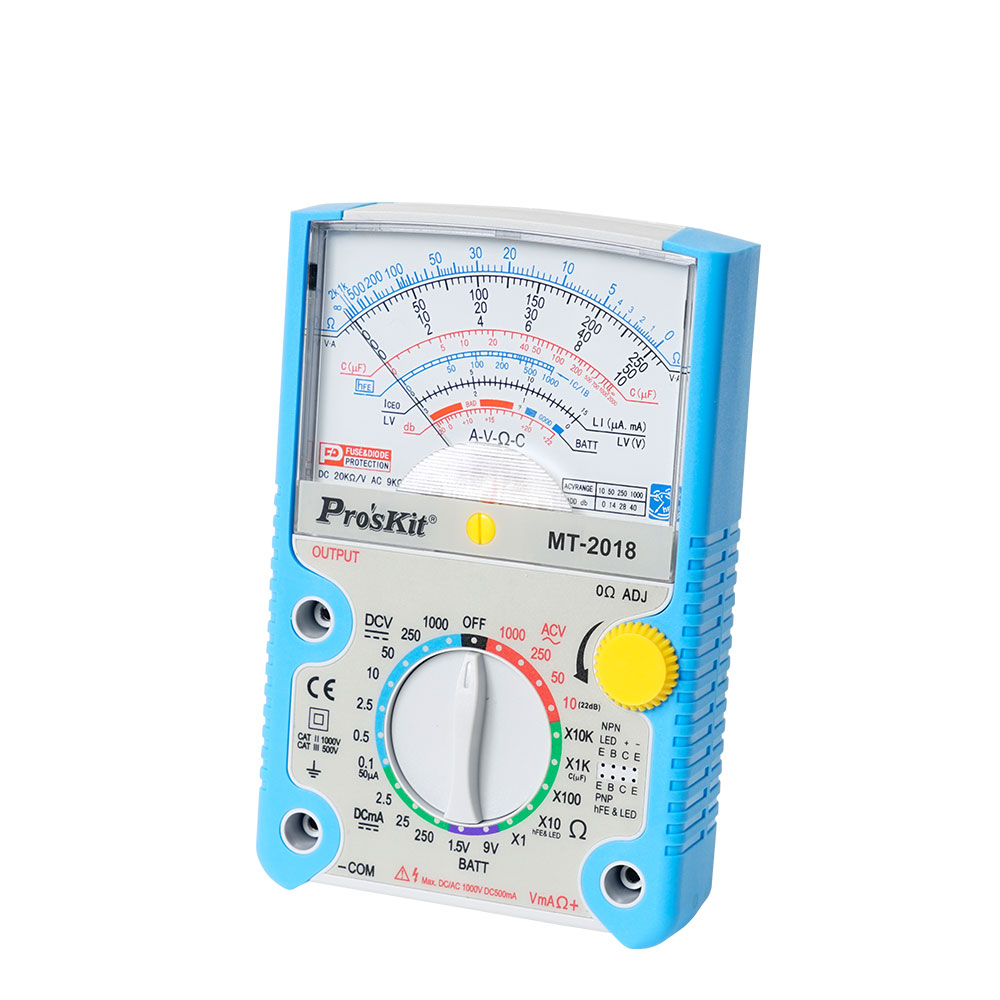

ProsKit MT-2018 Protective Function Analog Multimeter

  • Manufacturer: PROSKIT
    Model: MT-2018
    Origin: Taiwan
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Proskit
Model: MT-2018
Made in : Taiwan
Warranty: 12 Months

DCV: 0.1/0.5/2.5/10/50/250V ±3.0%FSD,1000V ±4.0%FSD
ACV: 10/50/250V ±4.0%FSD, 1000V±5.0%FSD
DCA: 50μ/2.5m/25m/250mA ±3.0%FSD
Resistance: ×1(0.2~2kΩ)/ ×10(2~20kΩ)/
×100(20~200kΩ)/ ×1k(200~2MΩ)/×10kΩ(2k~20MΩ) ±4.0%ARC
CapacitanceC1: (R×1k): 2000μF(Approx.),C2(×50μA):0.025μ/0.25μ/25μ
±3.0%FSD(Option MT-2007-C)
Battery Check    1.5V/9V(NEDA1604) x 1pcs
Transistor hFE test    Y
Diode & LED test    Y
Front Panel Controls    Range selector switch with OFF
position, 0Ω adjust knob
Power Source    1.5V AA x 2pcs and 9V(NEDA1604) x 1pcs
Size    160 x 105 x 40 mm
