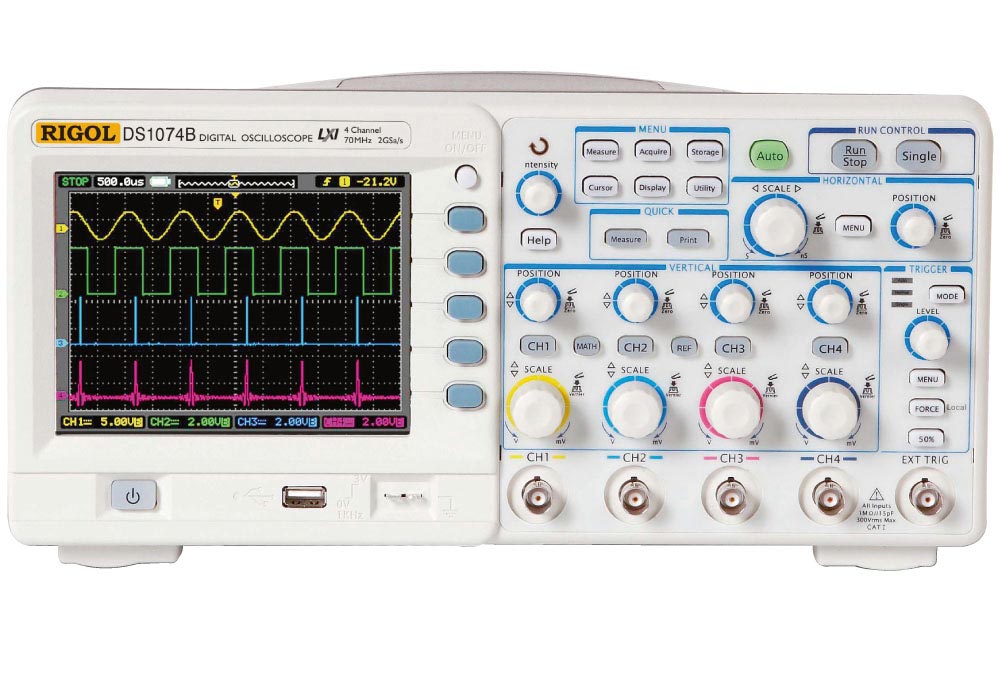

Rigol DS1074B digital oscilloscope (70MHz, 4 channels)

  • Manufacturer: RIGOL
    Model: DS1074B
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Bandwidth : 70Mhz
Channels : 4 Analog
5.7 inch, QVGA (320×240), 64K colors TFT LCD
Maximum real-time sample rate :  2GSa/s
Input Coupling :  DC, AC, GND
Input Impedance : 1MΩ± 2%
Maximum Input Voltage : 400V (DC+AC Peak, 1MΩ input impedance)
Scanning Speed Range : 5ns/div~50s/div
Volts/div Range : 2mV/div~10V/div
Supply Voltage : 100 ~ 240VAC / 45~440Hz
Multiple interface configurations: Standard USB Host and USB device, supports USB flash drive, LAN(LXI-C Compliant), optional USB-GPIB adapter
Hãng sản xuất : Rigol - China
Detail

Please Watch for this series here










DS1000B Series Digital Oscilloscope

DS1000B series products are four-channel plus an external trigger oscilloscpes which can capture multi-channel signals at the same time to meet the industrial needs. The  powerful triggering, analysis features and mathematical functions, plus the clear LCD display make waveform capture, observation  and analysis fast and easy.



Features and Benefits

  • Four analog channels, 200MHz bandwidth, 2GSa/s real-time sample rate (50 GSa/s equivalent time sample rate)
  • 5.7 inch, QVGA (320×240), 64K colors TFT LCD and LED backlight source technology enable the wave displays more vivid with lower power dissipation and longer life
  • Waveform storage, set up storage, 8-bit maps, 24-bit bitmap, PNG storage, CSV storage
  • Advanced trigger modes: edge, video, pulse width, Alternate and pattern trigger
  • Multiple interface configurations: Standard USB Host and USB device, supports USB flash drive, LAN(LXI-C Compliant), optional USB-GPIB adapter




Advanced Performance



4 independent analog signals input channels Alternate trigger









2GSa/s real-time sample rate LXI-C compliant









Pass/Fail test Advanced pattern trigger







Waveform record  Dynamic cursor tracking









Built-in help system
















Documents Release Date Type
DS1000B Series Datasheet 2011-08-17 Datasheet
DS1000B Series Programming Guide 2011-08-17 Programming Guide
RP2200 Users Guide 2009-04-15 Users Guide
RP3300 Users Guide 2009-02-10 Users Guide
RP1300H Users Guide 2009-12-04 Users Guide
RP3500 Users Guide 2010-08-12 Users Guide
RP1050H Users Guide 2009-10-26 Users Guide
RP5600 Users Guide 2010-07-23 Users Guide
RP6150 Users Guide 2010-08-19 Users Guide
RM-DS-1B Installation Guide 2009-04-29 Installation Guide
DS1000B Series ServiceGuide 2011-08-17 ServiceGuide
