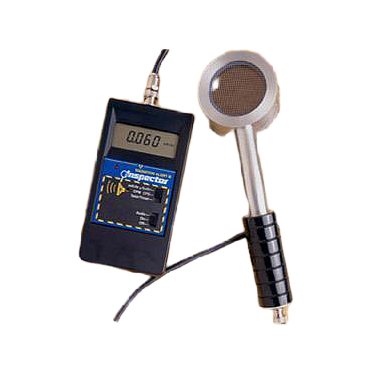

Inspector EXP+ Handheld Digital Radiation Alert® Detector

  • Manufacturer: SE
    Model: INSPECTOR EXP+
    • Request a Quotation Request a Quotation
  • 36,472,000 VND
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Detector
RAP-RS1 Probe - External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.). Radiation symbol on front label marks the center of the detector.

Display
4 digit liquid crystal display with indicators.
Averaging Periods
Display will update every 3 seconds. At low background levels, the update is the moving average for the past 30-second time period. The timed period for the moving average decreases as the radiation level increases
Alert Set Range
mR/hr .001 - 50 and CPM 1 - 160,000.
70db @ 1m.
Count Light

Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Outputs
Dual miniature jack drives CMOS or TTL devices: count to computer or datalogger. Submini jack input allows for electronic calibration

Energy Sensitivity
Detects Alpha down to 2 MeV.Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the end window.
Anti-Saturation

Meter will hold at full scale in fields as high as 100 times the maximum reading.
Power Requirements
One 9-volt alkaline battery. Battery life is approx.
2160 hours at normal background.
Temperature Range
-10º to 50ºC (14º to 122ºF)
Weight
Inspector: 6.3 oz. (181 g)
Probe - Approx. 11.5 oz. (328 g) w/o cable
Size
150 x 80 x 30 mm (5.9 x 3.1 x 1.2 in.)
Probe: 260 X 70 X 38 mm (10.25 X 2.75 X 1.5 in)
Probe Construction
Anodized aluminum housing
Size - Approx. 8.75 in. (22.23 cm) Dia.: 2.75 in. (7.0 cm)
Connector - Amphenol-Tucal
Handle - Black foam grip

Gamma Sensitivity
3340 CPM/mR/hr referenced to Cs137. Smallest detectable level for I-125 is .02 µCi at contact. Timer can set 1 minute sampling periods from 1 to 10 minutes.
Operating Range
mR/hr - .001 (1µR) to 100 mR/hr
CPM - 0 to 350,000
µSv/hr - .01 to 1000
CPS - 0 to 5000
Total/ Timer - 1 to 9,999,000 counts
Accuracy
mR/hr ±10% typical (NIST), ±15% max - 0 to 100
µSv/hr ±10% typical (NIST), ±15% max - .01 - 1000
CPM ±10% typical (NIST), ±15% max - 0 to 350,000
(Referenced to Cs137)





Detail
The Inspector EXP was designed to meet the requirements of emergency response personnel. It has the same valuable features, small size, and quality of the Inspector. However, instead of the built-in detector, it has the added versatility of an external probe. The carrying case has a clear window panel providing full view of the readout, count light, access to the switches, and a convenient belt loop for carrying the instrument. A small pocket is provided for a check source. The protective probe cover on the uniquely designed carrying case folds easily out of the way to allow one-handed operation if desired.

Specifications

Detector
RAP-RS1 Probe - External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.). Radiation symbol on front label marks the center of the detector.

Display
4 digit liquid crystal display with indicators.
Averaging Periods
Display will update every 3 seconds. At low background levels, the update is the moving average for the past 30-second time period. The timed period for the moving average decreases as the radiation level increases
Alert Set Range
mR/hr .001 - 50 and CPM 1 - 160,000.
70db @ 1m.
Count Light

Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Outputs
Dual miniature jack drives CMOS or TTL devices: count to computer or datalogger. Submini jack input allows for electronic calibration
Energy Sensitivity
Detects Alpha down to 2 MeV.Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the end window.
Anti-Saturation

Meter will hold at full scale in fields as high as 100 times the maximum reading.
Power Requirements
One 9-volt alkaline battery. Battery life is approx.
2160 hours at normal background.
Temperature Range
-10º to 50ºC (14º to 122ºF)
Weight
Inspector: 6.3 oz. (181 g)
Probe - Approx. 11.5 oz. (328 g) w/o cable
Size
150 x 80 x 30 mm (5.9 x 3.1 x 1.2 in.)
Probe: 260 X 70 X 38 mm (10.25 X 2.75 X 1.5 in)
Probe Construction
Anodized aluminum housing
Size - Approx. 8.75 in. (22.23 cm) Dia.: 2.75 in. (7.0 cm)
Connector - Amphenol-Tucal
Handle - Black foam grip
Gamma Sensitivity
3340 CPM/mR/hr referenced to Cs137. Smallest detectable level for I-125 is .02 µCi at contact. Timer can set 1 minute sampling periods from 1 to 10 minutes.
Operating Range
mR/hr - .001 (1µR) to 100 mR/hr
CPM - 0 to 350,000
µSv/hr - .01 to 1000
CPS - 0 to 5000
Total/ Timer - 1 to 9,999,000 counts
Accuracy
mR/hr ±10% typical (NIST), ±15% max - 0 to 100
µSv/hr ±10% typical (NIST), ±15% max - .01 - 1000
CPM ±10% typical (NIST), ±15% max - 0 to 350,000
(Referenced to Cs137)
Includes
Carrying Case, Cable for Inspector+ EXP: Beldon 9853 with Binder 31226 twinax. CE Certification.
Limited Warranty
1 year Limited Warranty, 90 day Limited Warranty on GM detector
Utility Menu
The Utility Menu offers several options accessible by holding down the + button while turning the instrument on.
• 3 second (fast response)
• Switches from mR/hr and CPM to µSv/hr and CPS
• Reset the cal factor to 100.
• Adjust the CAL factor.
• Reset all setting to default factory setting.
