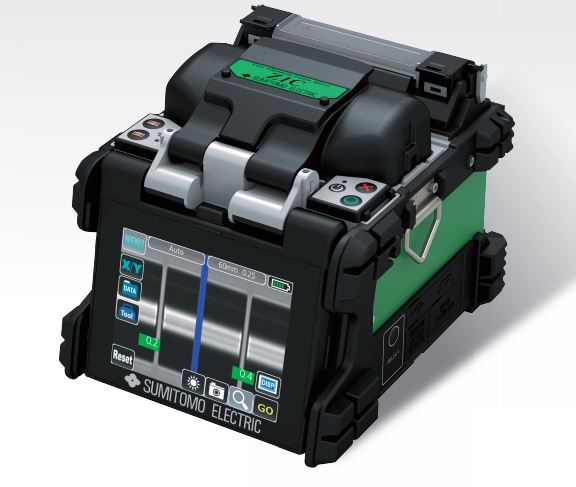

Sumitomo Z1C Fusion Splicer (Splice Time 7s , Heating Time 28 s)

  • Manufacturer: SUMITOMO
    Model: Z1C
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Manufacturer :  Sumitomo
Model : Z1C
Origin : Japan
Waranty :  12 month


Applicable fibers :  Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cleave length :  5mm to 16mm with sheath clamp
Splice loss : 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS)
Splice result storage :  Last 10,000 splices
Electrode life : 3000 splices
Size / weight :  146W x 159D x 150H (mm) / 2.0kg (including battery)
Temperature  :  -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Other features  :  PC software upgrade / data management
Terminals : USB 2.0  for PC communication. AC power supply.Vali case , Battery Module,CD Manual

Detail

  Datasheet

Options:

PCV – 11 : Car Battery Cable

BC – 11 : Battery Charger

VGT – 1 : Cleaning brush

ER – 10 : Electorode

CCS – 25 : Soft vali case

Fiber Holder : FHS-25

SFC : Fiber Cleave

JR – M03 : Jacket Remover

HR -3 : Alcohol Dispenser
