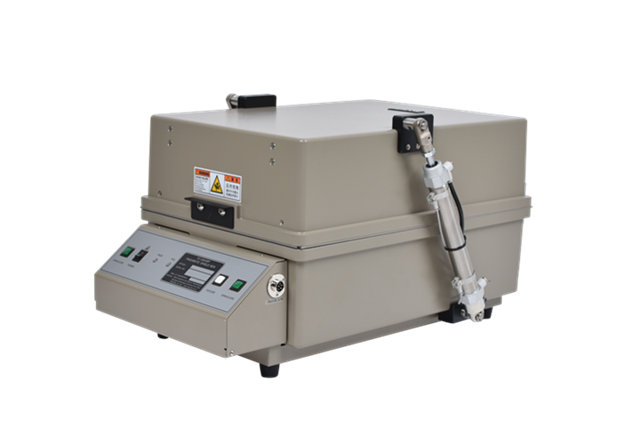

TESCOM TC-5922BP 空気式タイヤシールドボックス

  • 生産者: Tescom
    Model: TC-5922BP
    起源: Korea
    品物を保証します: 12 month
    • 要件クオート 要件クオート
  • 連絡先
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

  • 良質な取り決め
  • オリジナル保証
  • 宅配便
  • 買い取り簡単化

Manufacturer: TESCOM

Model:  TC-5922BP

Origin: Korea

Warranty: 12 months


◈ Mechanical Specifications

※ RF Connectors without I/O interface panel : two(2) N(f) outside and SMA(f) inside

※ Input voltage :  24VDC

※ Power Consumption: Max 1.5 W

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside :  296(W) x 435(D) x 238(H) mm

- Outside :417(W) x 601(D) x 332(H) mm, lid closed. 623(H) mm, lid open.

※ Weight : Approx. 27 kg

※ Packing

- Size : 560(W) x 820(D) x 480(H) mm

 - Weight : Approx.33kg

The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Chi tiết

Datasheet


Manual




- Key Features

High RF Shielding

Pneumatic control of lid open-close and optional test fixture motions

EMI filters on all Data and DC lines

Easily customizable to meet various test needs

Red and Green LED’s for Pass/Fail indication

RS-232C Remote Control

- Dimension

TC-5922BP Inner Dimension


TC-5922BP Outer Dimension
