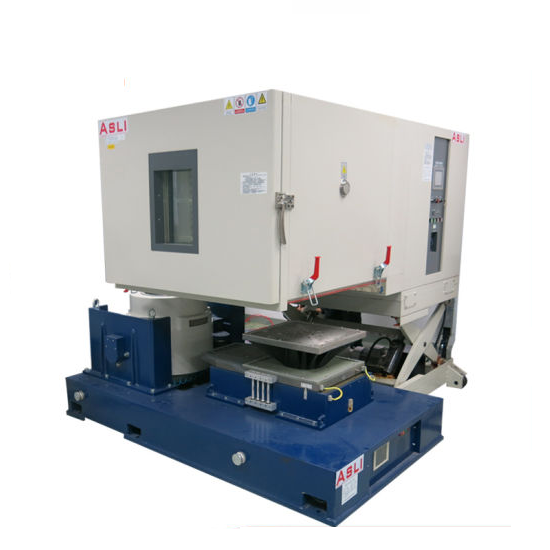

ASLI THV-408(A~F)温度湿度振动组合测试系统(600×850×800mm)

  • 制造商: ASLI
    Model: THV-408(A~F)
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: ASLI
Warranty: 12 months

Model

THV-408(A~F)

Internal Dimension

W×H×D(mm)

600×850×800

External Dimension

W×H×D(mm)

850×1950×2100

Temperature Range

Low temperature: (A:25℃; B:0℃; C:-20℃ ; D: -40℃; E: -60℃; F: -70℃)

High temperature:100℃(150℃)

Humidity Range

20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)

 Analytic Accuracy / Distribution uniformity of temperature and humidity

0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.

Control Accuracy of temperature and humidity

±0.5℃; ±2.5% R.H.

Temperature Rising / Falling
Speed Rate

Temperature rising approx.  0.1~3.0℃/min / temperature falling approx.  0.1~1.5℃/min;
(The Falling Speed Rate Min.1.5℃/min is a special optional condition)

Vibration Test Equipment

Choose proper vibration test bench according to customer's  test condition , the technical parameters please take  Electrodynamics Type Vibration Tester's parameters in this catalog for reference

Power

AC380V 3∮ 5 Lines, 50/60HZ

Optional Accessories

Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier
