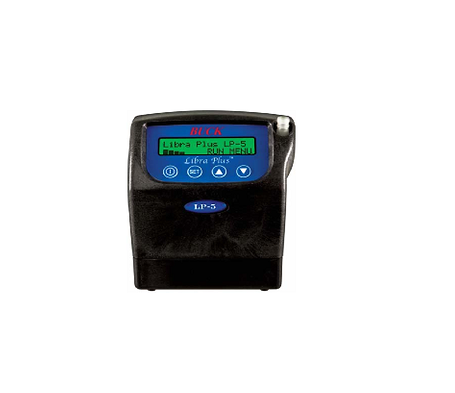

BUCK Libra™ LP-5 个体空气采样泵

  • 制造商: BUCK
    Model: LP5
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Buck
Model: LP-5
Warranty: 12 months
Order number: APB-906200

Specification:
- Flow Range: 0.8-5 LPM (800-5000 cc/min) , 5—799 cc/min With Universal Low Flow Holder P.N. APB-109030
- Compensation Range:
5000 cc/min up to 10” water back pressure
4000 cc/min up to 20” water back pressure
3000 cc/min up to 40” water back pressure
2000 cc/min up to 50” water back pressure
1000 cc/min up to 30” water back pressure
800 cc/min up to 15” water back pressure

- Accuracy: ± 5% of Compensation Range
- Run Time (hrs) at different backpressure and flow rate

(cc/min)          Backpressure (inches of water)
Flow Rate           5”     10”       15”     20”     30”     40”    50”
  1000             25hr    19hr    15hr    12hr    8hr
  2000             21hr    16hr    14hr    11hr    7hr     5hr    3hr
  3000             15hr    12hr     9hr     7hr      5hr    3hr
  4000             13hr    9hr       7hr     6hr
  5000              9hr     6hr

- Data Storage: Flow rate, elapsed clock time, accumulated volume, temperature, DP and any Flow Faults are logged in the memory for download to PC
- Display: Backlit LCD with 2 lines of 16 Characters
- Normal Operation: Battery Level, Flow Rate, Elapsed Time, Volume Collected, Timer, DP & Temp.
- Flow Fault Displays: Flow Fault, or Filter Off
- Power Supply: Single Pack, NiMH Batteries:  4.8V, 2.15 Ah
- Recharge Time:Standard 16 Hrs (Optional QuickOne™ 2 Hrs)
- Standard-Chargers: Input Voltage 230 VAC
- Approvals: CE EMC Directive (EMCD) 89/336/EEC UL and cUL (pending), ATEX (pending)
- Temperature
Operating 32°F to 113°F (0°C to 45°C)
Storage 32°F to 113°F (0°C to 45°C)
Charging 41°F to 104°F (5°C to 40°C)
- Case: Polycarbonate steel fiber filled, RFI/EMI-shielded
- Size: 11.4 cm H x 10.2 cm W x 5 cm D
- Weight: 539g
Pump kit includes
- pump
- Single pack NiMH battery
- Standard 230VAC battery charger
- Luer hose adapter
- Shirt/hose clip
- 3 feet of vinyl hose
- Operating manual
