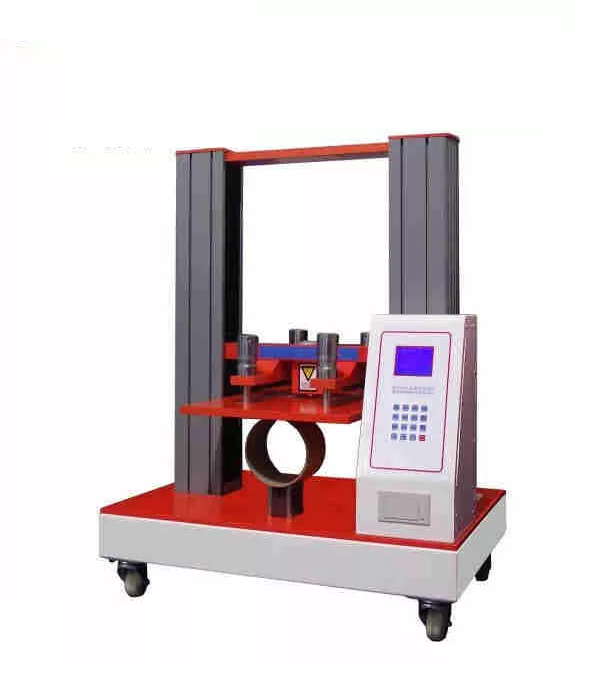

Cell Instruments CST-S / M纸箱压力破碎力测试仪

  • 制造商: Cell Instruments
    Model: CST-S/M
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Cell Instruments

Model: CST-S/M

Warranty: 12 months


Pressure range: 0-10KN

Force resolution: 0.1N

Display error: ±2%

Display variation: ≤2%

Back to zero error: ±0.2%FS

Deformation measurement accuracy: ±1mm

Compressing speed adjustable range: 5mm/min~90mm/min

Compressing speed relative error: ±3%(within 5~90mm/min)

Standard compressing speed: 12mm/min

Stacking test speed: 5mm/min

Lower platen stroke: 800mm

Test space: 400mm(L)*600mm(W)*600mm(H) (other space available)

Upper and lower platen parallelism degree: ≤1mm

Dimension: 850mm(L)*600mm(W)*1100mm(H) (varies with different test space)

Standards ASTM D642, ASTM D4169, ISO12048, TAPPI T804, JIS Z0212, GB/T 16491, GB/T 4857.4
