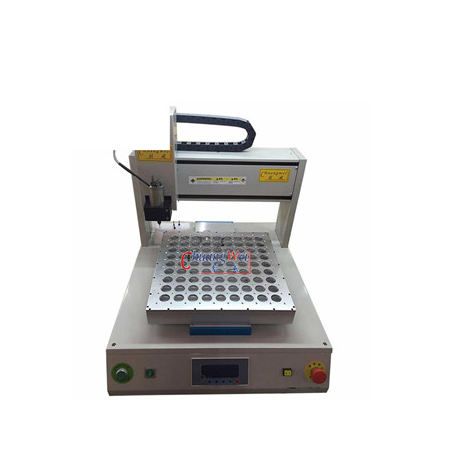

Chuang Wei CWD-3A 分板路由器

  • 制造商: Chuangwei
    Model: CWD- 3A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Chuang Wei
Model: CWD-3A
Warranty: 12 months

Motor drive system: Servo / stepper motor
Spindle speed : 50000r/s
Cutting performance: 500mm/s
Drive system repeatability: ±0.02mm
Cutting speed: Max 100mm/S(depends on PCB material and cutting quality)
Resolution: ±0.01mm
Configuration: X,Y,Z 3 axis
Repeatability: <0.1mm
PCB positioning fixture
Load and unload way: Manually
PCB thickness: 0.4mm-4mm
Working area: 400*400mm(could be customized made)
Spindle motor power: 0.5KW
Spindle motor speed: 50000r/m
Spindle motor cooling: Air-cooled
Machine dimension: 650*550*615mm
Weight: 73KG

详细

Datasheet
