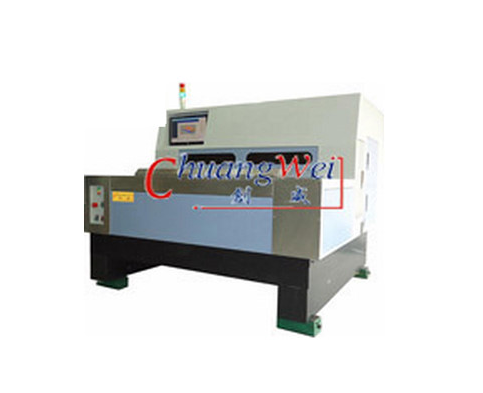

Chuang Wei CWV-3A1200 数控V型切割机

  • 制造商: Chuangwei
    Model: CWV-3A1200
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Chuang Wei
Model:CWV-3A1200
Warranty: 12 months

Size: 1900 × 2280 ×1585mm
Working Height: 920±50mm
Weight: 3000kg
Power Supply: AC 220V,50/60HZ
Capacity: 3.0KW
Air Pressure: 5kg/cm2
Working Platform: Max:1550mm*630mm
Thickness: 0.3~3.2mm
Blade spec
Outer Dia:φ120mm; Inner Dia:φ25.4mm
Positioning Dowel: Dia:2MM(7PCS)
Min Distance between the first V score line & Pin hole: 4.5MM
Blade thickness: 2mm
V-groove Residual thickness accuracy: ±2mil
V-groove Pitch accuracy: ±2mil
V-groove Parallel precision: ±2mil
Blade Cutting Speed: 6,000R.P.M.
Cutting Speed: 0~50m/min
Displace SpeedMax : 70M/MIN
Dust Collector: 2in plumbing3.5KW
