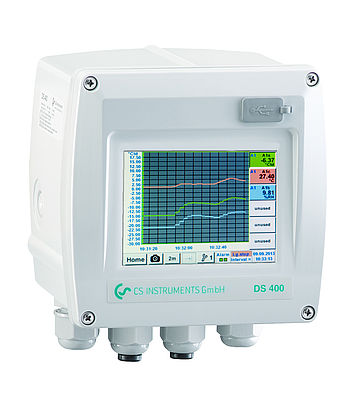

Cs-instruments DS 400(0500 4000)图表记录仪

  • 制造商: Cs-instruments
    Model: DS 400 (0500 4000)
    来源: Germany
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Cs-instruments

Model: DS 400
Made in: Germany

Dimensions: 118 x 115 x 98 mm
Connector: 5 x PG12 connection ports for sensor and power supply, forwarding alarm
            1 x RJ45 Ethernet port
Control panel: 92 x 92 x 75 mm
Weight: 545 g
Material: Plastic, Polyester front
Degree of protection: IP44
Input Sensors: 4 (2x2) sensor inputs for analog and digital sensors.
                            Digital CS sensor for dew point and consumption with SDI FA / VA 400 Series interface.
                            Third party sensors via RS 485 / Modbus RTU, other bus systems can be made as required.
                            CS-like sensor for pressure, temperature, clamp-on amp
                            Third party sensors are analog 0/4 - 20 mA, 0 - 1/10/30 V, pulse, Pt100 / Pt1000, KTY.
Power supply for sensor: Output voltage: 24 VDC ± 10%
                                             Maximum output power on all channels: 280mA
Interface: USB (USB 2.0), Ethernet TCP RS 485 Modbus RTU, SDI (serial data interface), other on-demand bus systems, optional web server
Power supply: 100 - 240 VAC / 50 - 60 Hz, maximum input: 23VA, special version 24 VDC
3.5 "color screen -Touchpanel TFT transmissive, graphic, curve, statistics
Accuracy: See specifications for the sensor
Operating Temperature 0 - 50 ° C
Storage temperature -20 - + 70 ° C
