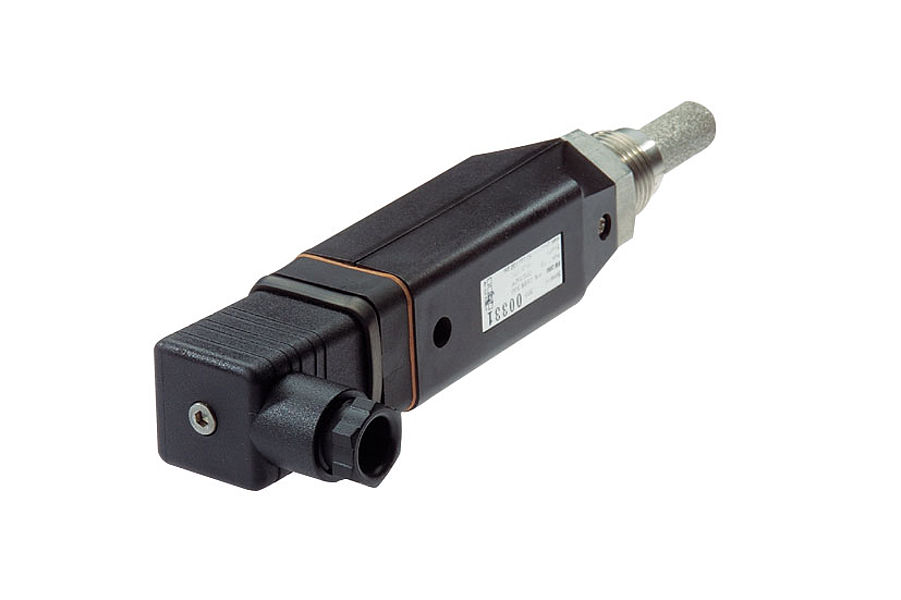

Cs-instruments FA 300-2 Ex 露点传感器(-80到+ 20°Ctd)

  • 制造商: Cs-instruments
    Model: FA 300-2 Ex
    来源: Germany
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Cs-instruments

Model: FA 300-2 Ex
Made in: Germany

Measuring range: Pressure dew point at ° Ctd
FA 300-2 Ex -80 to +20 ° Ctd = ^ 4 to 20 mA
Pressure range: -1 to 300 bar
Power supply: 24 VDC (10 to 30 V DC)
Accuracy: ± 0.5 ° Ctd (-10 to +50 ° Ctd)
typical ± 2 ° Ctd at -40 ° Ctd
Output: 4 to 20 mA in 2 wire technology
Protection class: IP65
Compliant with CE: DIN EN 61326
Operating Temperature: -20 to +70 ° C
Storage temperature: -40 to +80 ° C
Download for analog output:? 500 Ohm
Threaded screw: G 1/2 "in stainless steel
maximum resistance
Analog signal: 500 R at 24 VDC
Input voltage Ui max: 30 V
Max input current: 100 mA
Input power max Pi: 1 W

详细

datasheet

manual
