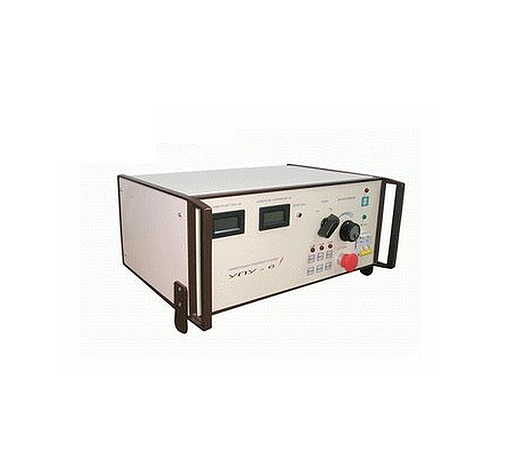

DET DTE-6 绝缘测试仪 (AC/DC, 6kV, 70mA)

Universal insulation breakdown tester DTE-6 is designed for testing the insulation of the electrical equipment with an AC and DC voltage in range 0-6 kV.

Due to the high output current, insulation tester DTE-6, can also be used for testing the insulation braiding of large electric machinery with AC voltage.



Parameters

  • Output voltage type: AC/DC
  • Max output voltage, kV: 6
  • Max output current, mA:70 (100)
  • Possible limits of output voltage settings, kV : 1; 3; 6
  • Output current measuring range, mA: 0-100
  • Current that triggers overcurrent protection, mA: 120
  • Supply voltage: 220V +/- 22V; 50 (60) Hz
  • Current and voltage measurement error, %:3 (of full reading)
  • Power consumption, VA: 650
  • Continuous operating time under full load, hours: 8
  • Net weight, kg: 25
  • Dimensions, mm: 480x200x350
