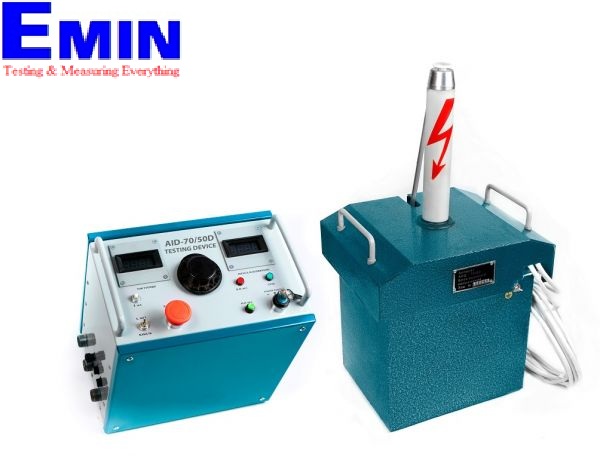

DET AID-70/50绝缘测试仪/ 电缆连接(数字)

  • 制造商: DET
    Model: AID-70/50D
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: DET-Ukraine
Model: AID-70/50D
Warranty: 12 month

Digital indication

Output voltage type: DC, AC
Max output voltage (kV): 70VDC, 50VAC
Max output current (mA): 14(DC), 45(AC)
Output voltage measuring range (kV): 0.5-70 (VDC), 0.5-50 (VAC)
Output current measuring range (mA): 0-14 (DC);0-45 (AC)
Overcurrent protection, mA (Max):  15(DC);46 (AC)
High voltage unit overcurrent protection limit (A): 10(DC), 10(AC)
Supply voltage: 220V +/- 22V; 50 (60) Hz
Current and voltage measurement error (%): 3 (of full reading)
Control unit weight (kg): 11
High voltage unit weight (kg): 44
Control unit dimensions (mm): 315x220x365
High voltage unit dimensions (mm): 360x285x670
