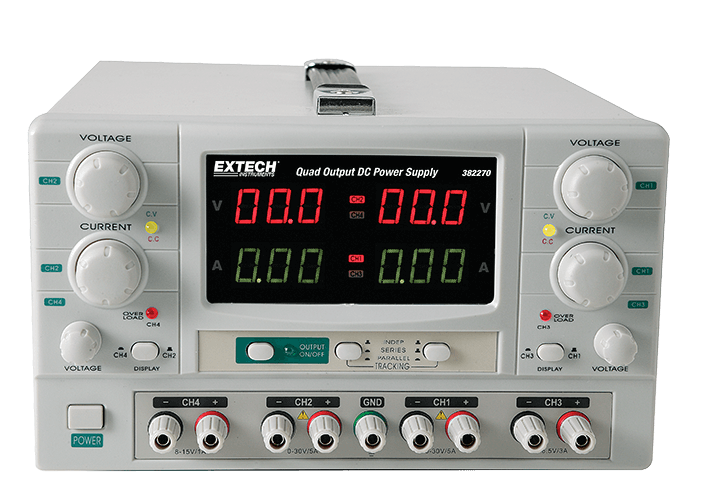

EXTECH 382270 四路输出直流电源

Output Voltage: 0-30V/ 0-5A, 0-30V/0-5A,

                           3-6.5V/3A (fixed), 8-15V/1A(fixed)

Load Voltage Regulation: ≤1x10-4 + 3mV

Line Voltage Regulation: ≤1x10 + 3mV

Load Current Regulation: ≤2x10+ 3mA

Line Current Regulation: ≤2x10 + 3mA

Ripple and Noise: <0.5mVrms

Power: 100 to 240VAC,50/60Hz

Dimensions: 10.2 x 6.3 x 14.5" (260 x 160 x 370mm)

Weight: 26.5lbs (12kg)

Complete with power cord and 4 pairs of test leads (banana plug to alligator clip)


Details

Features:

  • Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
  • Outputs up to 60V in series mode or 10A in parallel mode
  • Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A
  • Overload and short circuit protection
  • Complete with power cord and 4 pairs of test leads (banana plug to alligator clip)
