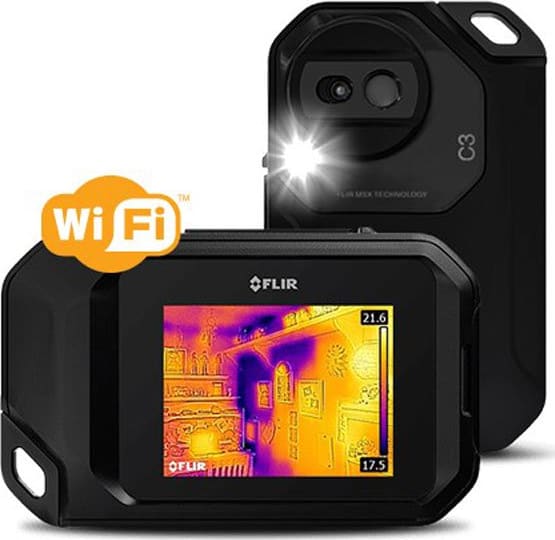

FLIR C3 紧凑型红外热像仪(带WiFi功能)

  • 制造商: FLIR
    Model: C3
    来源: Estonia
    • 报价要求 报价要求
  • 17,272,500 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Flir
Model: C3
Warranty: 12 months

Imaging and Optical Data
- IR Sensor: 80 × 60 (4,800 measurement pixels)
- Thermal Sensitivity: < 0.10°C
- Field of View: 41° x 31°
- Minimum Focus Distance: Thermal: 0.15 m (0.49 ft.)
- MSX®: 1.0 m (3.3 ft.)
- Image Frequency: 9 Hz
- Spectral Range: 7.5 - 14 µm
- 3" Display (Color): 320 x 240 pixels
- Auto Orientation: Yes
- Touch Screen: Yes
Image Presentation Modes
- Thermal Image: Yes
- Visual Image: Yes
- MSX®: Yes
- Gallery: Yes
- Picture in Picture: IR area on visual image
Measurement
- Object Temperature Range: -10°C to 150°C (14 to 302°F)
- Accuracy: ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal
Video Streaming
- Non-Radiometric IR-Video Streaming: Yes
- Visual Video Streaming: Yes
Digital Camera
- Digital Camera: 640 x 480 pixels
- Digital Camera, Focus: Fixed Focus
Wi-Fi
- Standard 802.11 b/g/n
- Frequency Range: 2400-2480 MHz; 5150-5260 MHz
- Max. Output Power 18 dBm
Data communication interfaces
- Wi-Fi: Peer-to-peer (ad hoc) or infrastructure (network)
- USB, Connector Type: USB Micro-B: Data transfer to and from PC, iOS and Android
- USB, standard: USB 2.0
- Battery: 3.7 V Rechargeable Li-ion polymer battery
- Battery Operating Time: 2 hours
- Charging System: Charged inside the camera
- Charging Time: 1.5 hours
- External Power Operation: AC adapter, 90-260 VAC input; 5 V output to camera
- Power Management: Automatic shut-down
- Operating Temperature Range: -10°C to 50°C (14 to 122°F)
- Storage Temperature Range: -40°C to 70°C (-40 to 158°F)
- Weight: 0.13 kg (0.29 lb.)
- Size (L x W x H): 125 x 80 x 24 mm (4.9 x 3.1 x 0.94 in.)
- Box Contents: Infrared camera, lanyard, pouch, power supply/charger,
tripod mount, USB cable, printed documentation
