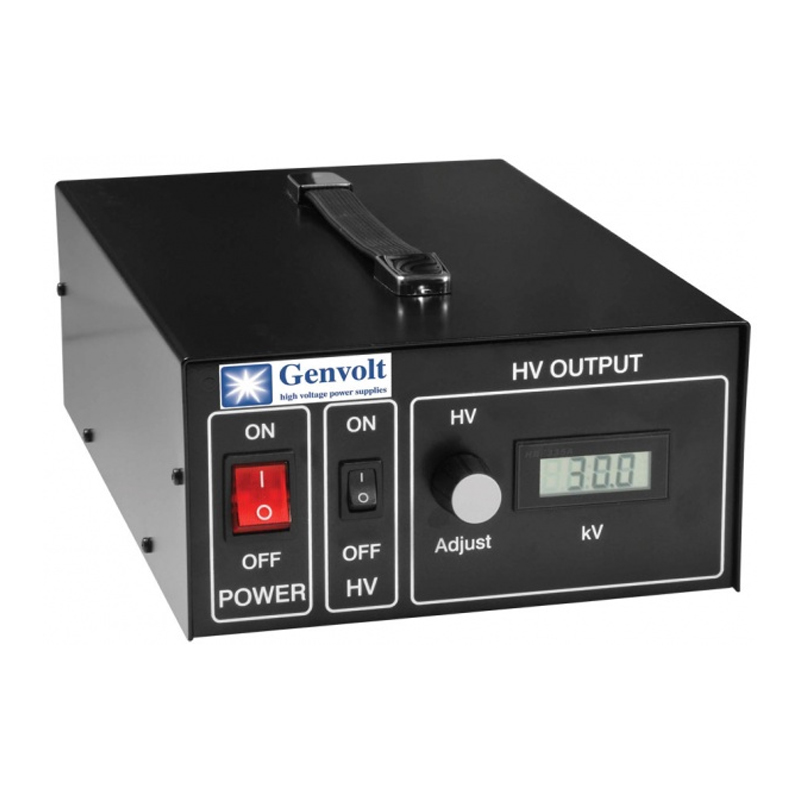

Genvolt 72030 LED数字显示台式高压电源(0-20kV,1.5mA)

  • 制造商: Genvolt
    Model: 72030
    来源: United Kingdom
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Genvolt

Model: 72030

Origin: UK

Warranty: 12 months


Input

DC input voltage range: 22 - 26VDC

AC input voltage range: 85 - 260VAC

DC input current: 2.5A maximum. At full power and minimum input voltage

Efficiency at full load: More than 70%

Output

Output voltage range*: 0-20kV

Maximum output current: 1.5mA

Output power: 0 to 30W

Output polarity: Positive or negative with respective to ground

Voltage load regulation: Less than 0.01%

Voltage line regulation: Less than 0.3%

Voltage ripple: Less than 0.01%

Voltage stability: Less than 0.05% for 8 hours per day with 30 min. warm-up.

Temperature coefficient: Less than 200ppm/°C over the specified temperature.

Operating temperature: 0 to 40°C

Storage temperature: -20 to 60°C

Humidity: 0 to 90% non-condensing

Weight  DC input: 2.8kg (6.17lbs)

AC input: 3.6kg (7.94lbs)

Dimensions: Width 200mm, height 100mm, depth 300mm

Power input connector:  AC input: standard IEC connector

DC input: 24V 5 way XLR connector (male)
