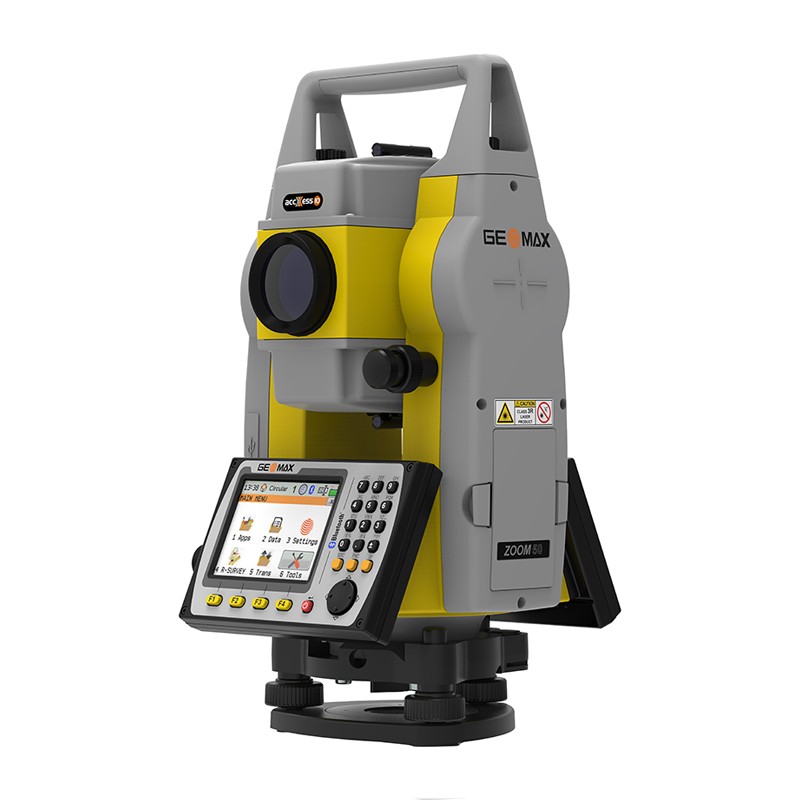

Geomax ZOOM35 PRO -2“A10 全站仪

  • 制造商: GEOMAX
    Model: ZOOM35 PRO -2” A10
    • 报价要求 报价要求
  • 176,400,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Geomax
Model: ZOOM35 PRO -2” A10
Origin: Singapore

Long-range distance measurement on reflector and >1000 m reflectorless
Angle measurements
Accuracy: 2"
Display resolution: 0.1” (0.1 mgon)
Method: Absolute, continuous, diametrical
Compensation: Quadruple axis
Distance measurements
Prism: 3,500 m / 2 mm + 2 ppm
Long range : 10,000 m / 5 mm + 2 ppm
Typ. meas. time: 1 s
Reflctorless: > 1,000 m / 2 mm + 2 ppm
Footprint: 8 x 20 mm
Interface
Keyboard: Full alphanumeric
Display: 3.5” Quarter-VGA colour touch screen (320 x240 pixel), 10 lines x 30
characters, self heating, illuminated
Data recording: Internal memory 50,000 pts
Interface: USB, serial & external power
Removable memory: USB memory stick
Bluetooth®: Device Class 1
Power supply
Internal battery: Removable Li-Ion 4.4 Ah / 7.4 V
Operating time: 36 h (continous angle),
9 hours (continous distance measurement every 30s)
Physical specifiations
Weight: 5.1 kg (incl. battery & tribrach)
Operating temp.: – 30°C to 50°C
Protection class: IP55 dust- and waterproof
Humidity : 95 %, non-condensing
Plummet
Type: Laser point, adjustable brightness
Accuracy : 1.5 mm at 1.5 m instrument height
Operating system: Windows® Embedded CE
