Guideir Sensmart IR236E 智能型红外自动搜索测温系统(0°C~50°C,±0.3°C)

  • 制造商: Guideir
    Model: IR236E
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Guide Sensmart

Model: IR236E

Warranty: 12 months


Detector: Uncooled FPA, 384 x 288

Pitch :25μm

Spectral Range: 8μm~14μm

NETD: ≤80mk

Lens

FOV: 13.7° x10.3°

Focus :40mm

Visible

Resolution: 1280X960

Temperature

Measurement Range: 0°C ~50°C

Accuracy: ±0.3°C

Temperature Calibration: Built-in and exteriorization blackboby, auto calibration

Video

Frequency: 50Hz/60Hz

Format: PAL/NTSC

Power

Voltage: AC220V ±10%, 50HZ

Environment Characteristics

Working Temperature: -10°C ~ 50°C

Storage Temperature: -20°C ~ 60°C

Humidity: <90%

Interface

Interface: RJ45, power

Physical Parameter

Dimensions: 430mm x 240mm x 40mm (excluding PC)

Weight: 2KG ( excluding PC)


Standard configuration: IR236E

Thermal imager IR236: 1

IR lens: 1

Visual camera: 1

MOXA 100M switch device: 1

Blackbody: 1

Power cable of blackbody: 1

Bracket of blackbody: 1

Pan/Tilt or bracket of IR236: 1

Power cable of IR236: 1

Industry PC: 1

Video capture card: 2

DVR: 1

Video cable: 1

BNC connector: 1

Video coaxial cable: 1

Gigabit switch device: 1

Network cable: 1

Safety case: 1

Disc with software and user manual: 1

Certificate of conformity: 1


Optional accessory

LCD

Cabinet A (65*65*65 cm)

Cabinet B (132*65*65 cm)

Chi tiết

IR236E IR fever sensing system is professional in taking thermal images even on the flowing crowds with high efficiency and distinguish those with elevated temperature, which indicates possible presence of the fatal virus, like SARS and Zika Virus.With a size similar to competition

products, it integrates a wide assortment of features that deliver unprecedented efficiency, convenience and productivity. IR236E fever sensing system is absolutely the ideal equipment in the airports, ports, and stations, and it is the first guard to protect your health and wealth.

Features

- Find the fever people precisely and alarm automatically

- Razor-sharp visual and thermal imaging

- Real-time high-frequency data capture transmission and storage

- Precise single & multiple hot spots and Alarm

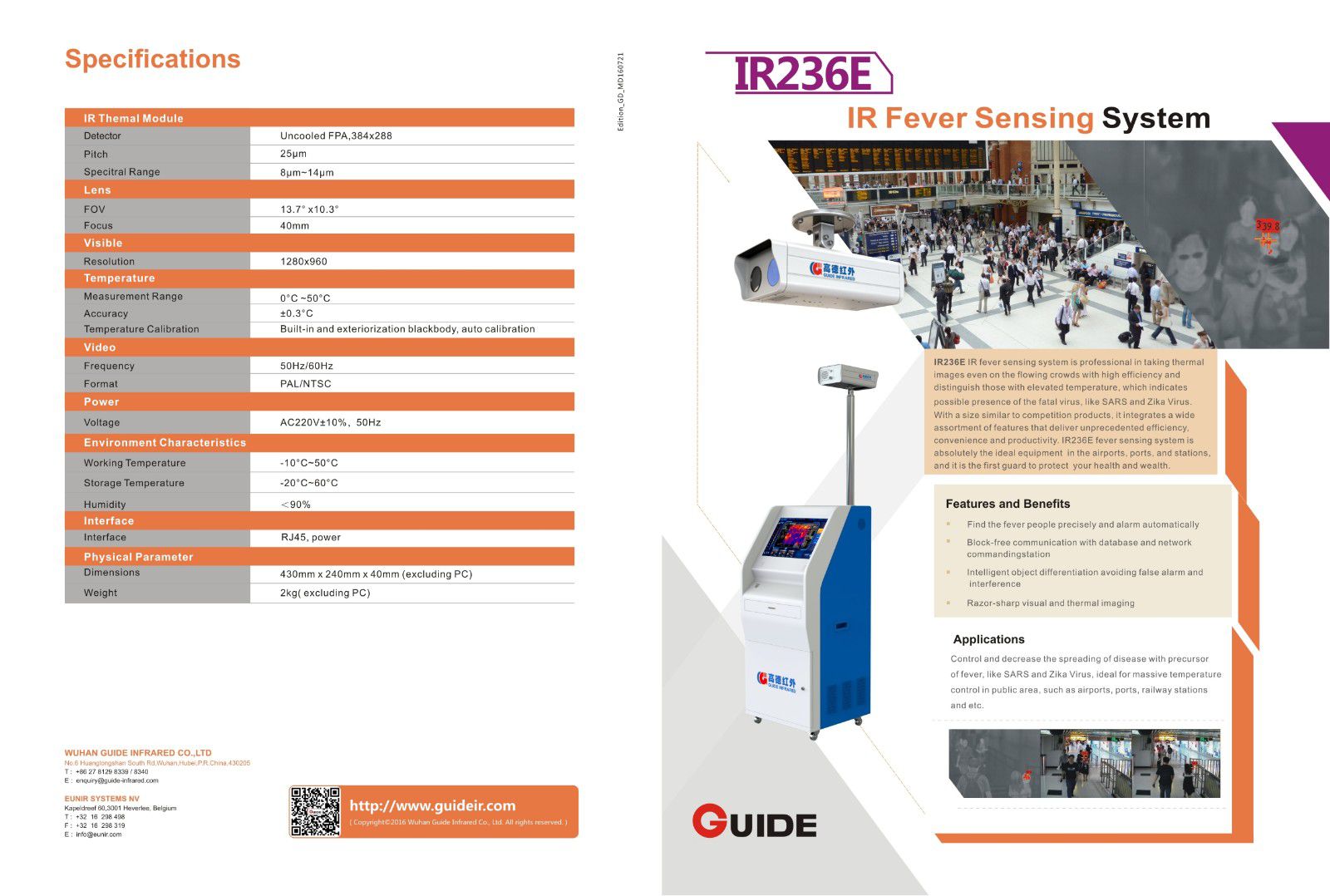

Datasheet


Intro Powerpoint


Flyer
