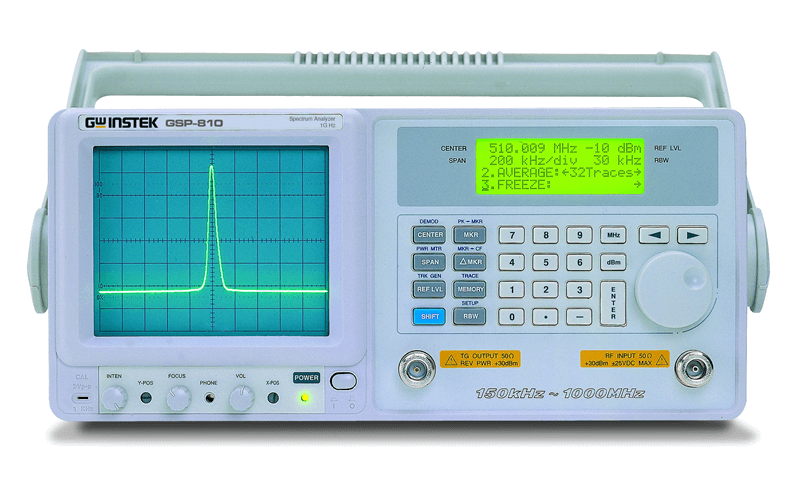

Gw Instek GSP-810 1GHz频谱分析仪 (150kHz ~ 1Ghz)

FREQUENCY
Frequency Range
150kHz~1GHz
Aging Rate
± 10ppm, 0~50°C, 2ppm/yr
Span Range

Zero, 2kHz~100MHz/div in 1-2-5 sequence
Phase Noise
-77dBc/Hz @ 1GHz 30kHz offset
Frequency Resolution
1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
Frequency Display
6 1/2 digit setting
Frequency Control

Digital phase locked
RESOLUTION BANDWIDTH
RBW Range

3kHz, 30kHz, 220kHz, 4MHz
RBW Accuracy

15%
Video Bandwidth Range

1.6kHz/90kHz couple with RBW
AMPLITUDE
Measurement Range
-100dBm~+20dBm
Overload Protection
+30dBm continuous, ± 25VDC
Reference Level Range
-30dBm~+20dBm
Amplitude Display Range
75dB
Amplitude Accuracy
±1.5dB typical @ 0dBm, 80MHz
Frequency Flatness
±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz
Amplitude Level Linearity

± 1.5dB over 70dB
DYNAMIC RANGE
Average Noise Floor
-95dBm @30kHz RBW, -100dBm typical /
-75dBm: 150kHz~10MHz
Third Inter-Modulation
<-70dBc, @-40dBm input, 2tones, 2MHz apart/
<-45dBc:150kHz~10MHz
Harmonic Distortion
<-40dBc, RF input < selected reference
Non-Harmonic Spurious
<-60dbc typical="" down="" from="" reference="" level="" average="" 5mhz="" div="" span="">
DISPLAY SYSTEM
Display Device
CRT Display, 8 x 10 graticule, 6-inch waveform screen
LCD Display, 4 line x 20 character data screen
Display Function

Center Frequency Control, Bandwidth,
Reference Level, Span Range, Amplitude
FUNCTIONS
Marker Mode

Absolute, relative, PK->marker, marker->center
Number of Markers

2
Marker Resolution
0.1dB, 1kHz
Marker Accuracy
0.1dB±amplitude accuracy
Memory
10 save/recall memory
Trace
Max. hold, average(2~32 traces), freeze(Hold)
Setup

Access parameters
Demodulator

WB FM, 120kHz deviation
MB FM, 75kHz deviation
NB FM, 30kHz deviation
AM
Outputs : Internal speaker, 3.5mm stereo jack,
wired for mono operation
Calibrate Signal
80MHz, -30dBm
Interface

RS-232C standard & remote display software
(The software will be downloaded from GW Web-Site.)
POWER SOURCE AC


100V/120V/220V/230V ±10%, 50/60Hz
ACCESSORIES

User manual x 1, Power cord x 1
DIMENSIONS & WEIGHT


310(W) x 150(H) x 455(D) mm
Approx. 8.5kg
Details

Download Datasheet

FREQUENCY
Frequency Range
150kHz~1GHz
Aging Rate
± 10ppm, 0~50°C, 2ppm/yr
Span Range

Zero, 2kHz~100MHz/div in 1-2-5 sequence
Phase Noise
-77dBc/Hz @ 1GHz 30kHz offset
Frequency Resolution
1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
Frequency Display
6 1/2 digit setting
Frequency Control

Digital phase locked
RESOLUTION BANDWIDTH
RBW Range

3kHz, 30kHz, 220kHz, 4MHz
RBW Accuracy

15%
Video Bandwidth Range

1.6kHz/90kHz couple with RBW
AMPLITUDE
Measurement Range
-100dBm~+20dBm
Overload Protection
+30dBm continuous, ± 25VDC
Reference Level Range
-30dBm~+20dBm
Amplitude Display Range
75dB
Amplitude Accuracy
±1.5dB typical @ 0dBm, 80MHz
Frequency Flatness
±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz
Amplitude Level Linearity

± 1.5dB over 70dB
DYNAMIC RANGE
Average Noise Floor
-95dBm @30kHz RBW, -100dBm typical /
-75dBm: 150kHz~10MHz
Third Inter-Modulation
<-70dBc, @-40dBm input, 2tones, 2MHz apart/
<-45dBc:150kHz~10MHz
Harmonic Distortion
<-40dBc, RF input < selected reference
Non-Harmonic Spurious
<-60dbc typical="" down="" from="" reference="" level="" average="" 5mhz="" div="" span="">
DISPLAY SYSTEM
Display Device
CRT Display, 8 x 10 graticule, 6-inch waveform screen
LCD Display, 4 line x 20 character data screen
Display Function

Center Frequency Control, Bandwidth,
Reference Level, Span Range, Amplitude
FUNCTIONS
Marker Mode

Absolute, relative, PK->marker, marker->center
Number of Markers

2
Marker Resolution
0.1dB, 1kHz
Marker Accuracy
0.1dB±amplitude accuracy
Memory
10 save/recall memory
Trace
Max. hold, average(2~32 traces), freeze(Hold)
Setup

Access parameters
Demodulator

WB FM, 120kHz deviation
MB FM, 75kHz deviation
NB FM, 30kHz deviation
AM
Outputs : Internal speaker, 3.5mm stereo jack,
wired for mono operation
Calibrate Signal
80MHz, -30dBm
Interface

RS-232C standard & remote display software
(The software will be downloaded from GW Web-Site.)
POWER SOURCE AC


100V/120V/220V/230V ±10%, 50/60Hz
ACCESSORIES

User manual x 1, Power cord x 1
DIMENSIONS & WEIGHT


310(W) x 150(H) x 455(D) mm
Approx. 8.5kg
Opt. 01
Tracking Generator
·             Frequency range: 150kHz ~ 1GHz
·             Amplitude range: -50 ~ 0dBm
·             Amplitude resolution: 1dB
·             Amplitude accuracy: ±1dB @ 0dBm, 80MHz
·             Attenuation accuracy: ±1dB @ 50MHz
·             Amplitude flatness: ±1dB @10MHz/div, 1.5dB @0dB, entire band
·             Harmonics: < -30dBc (<-25dBc, 150kHz ~ 10MHz)
·             Reverse power: < +30dBm
·             Impedance: 50 ohm nominal
·             Return loss: < 10dB (VSWR < 2)
·             Connector: Type N female
Opt. 02
Power Meter
·             Frequency Range: 10MHz ~ 2 GHz, usable to 2.7GHz
·             Power Level Range: -20 dBm ~ +23 dBm, usable to +30 dBm
·             Power Level Overload: +40 dBm < 10% duty cycle, < 10 mS duration
·             Return Loss: < 1:1.35 VSWR into 50 ohms, < 1:1.25 typical
·             Readout Resolution: 0.2 mW, 100 mW scale, 2 W, 1 mW scale; 0.1dB, Log scale
·             Accuracy: ±(10% rdg 1digit)
·             Readout: mW or dBm
Opt. 03
Remote Control Software
·             Connecting PC to get the trace and provide the control for setting

OPTIONAL ACCESSORIES
ATA-001
BNC Antenna
(An additional ADP-001 is needed for fitting GSP spectrum analyzers)
ATA-002
Near Field Probe
(An additional ADP-001 & GTL-110 is needed for fitting GSP spectrum analyzers)
RLB-001
Return Loss Bridge RLB Frequency Range 10MHz ~ 1GHz
GTP-3000
Passive touch Probe Set
PR-03: Passive touch probe, SMA(F)
ADP-002: Adaptor, SMA(J/F) ~ N(P/M)
GTL-303: RF Cable Assembly, SMA(P/M), 600mm
GKT-001
General Kit set
ADP-002: adaptor, SMA(J/F) ~ N(P/M) x 2
ATN-100: 10dB attenuator, N(J/F) ~ N(P/M) x 1
GTL-303: RF cable assembly(SMA(P/M),RD316,600mm)x2
GSC-002: Kit box x 1
GKT-002
CATV Kit set
ADP-001: adaptor, BNC(J/F) ~ N(P/M) x 2
ADP-101: adaptor, BNC(J/F)75Ω ~ BNC(P/M)50Ωx 2
GTL-304: RF cable assembly(RG223,N(P/M)-N(J/F),300mm)x2
GSC-003: Kit box x 1
GKT-003
RLB Kit set
GAK-001: termination 50 , N(P/M) x 1
GAK-002: Cap with chain, N(P/M) x 1
GTL-302: RF cable assembly(RG223,N(P/M),300mm)x2
GSC-004: Kit box x 1
GKT-006
EMI Probe Kit set
ANT-01: 6cm Loop, H-Field Probe x 1
ANT-02: 3cm Loop, H-Field Probe x 1
ANT-03 6mm Stub tip, E- Field Probe x 1
PR-03: Touch Passive Probe x 1 ADP-02: N(P/M)~SMA(J/F) Adapter x 1
ADP-01: N(P/M)~BNC(J/F) Adapter x 1
Test Lead: BNC(P/M)~BNC(P/M) RF Cable x 1
Test Lead: SMA(P/M)~SMA(P/M) RF Cable x 1
GTL-301
RF Cable RG 223 N(P/M), 1000mm
