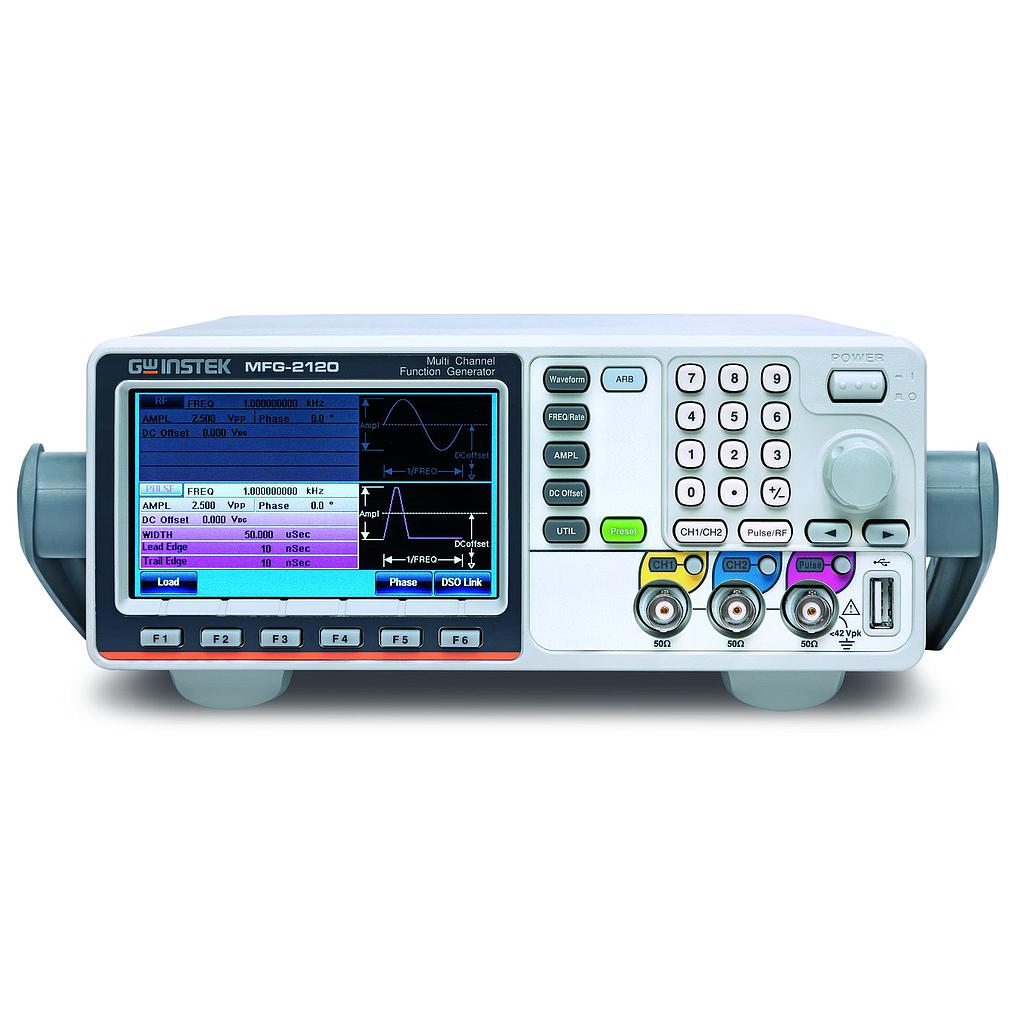

Gwinstek MFG-2230M 多通道信号发生器(2通道,30Mhz)

  • 制造商: GW INSTEK
    Model: MFG-2230M
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 11,961,500 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: MFG-2230M
Manufacture: Gwinstek
warranty: 12 months

H1/ CH2

Arbitrary Functions
ARB function
Built-in
Sample Rate
200 MSa/s
Repetition Rate
100MHz
Waveform Length
16k points
Amplitude Resolution
14 bits
Non-Volatile Memory
10sets 16k points(1)
User-defined output section
From point 2~16384
User-defined output marker section
From point 2 ~ 16384
Output mode
1~1048575 cycles or infinite mode
Frequency Characteristics
Range
Sine
60MHz(max)
Square
25MHz(max)
Triangle, Ramp
1MHz
Resolution
1μHz
Accuracy Stability
±20 ppm
Aging
±1 ppm, per 1 year
Tolerance
≤1μHz
Output Characteristics(2
Amplitude Range
1mVpp to 10 Vpp (into 50Ω)
2mVpp to 20 Vpp (open-circuit)
Accuracy
±2% of setting ±1 mVpp
(at 1 kHz/into 50Ω without DC offset))
Resolution
0.1mV or 4 digits
Flatness
± 1% (0.1dB) ≦1MHz
± 3% (0.3dB) ≦50 MHz
± 10% (0.9dB) ≦160MHz
± 30% (3dB) ≦320MHz
(sinewave relative to 1 kHz/into 50Ω)

Units
Vpp, Vrms, dBm
Offset
Range
±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)

Accuracy
1% of setting + 5mV+ 0.5% of amplitude
Waveform Output
Impedance
50Ω typical (fixed)
> 10MΩ (output disabled)

Protection
Short-circuit protected
Overload relay automatically disables main output

Ground Isolation
42Vpk max
Sync Output
Range
TTL-compatible into>1kΩ

Impedance
50Ω standard

Ground Isolation
42Vpk max
Sine wave Characteristics(3)



Harmonic
distortion
–60 dBc DC~200kHz, Ampl>0.1 Vpp
–55 dBc 200kHz~1 MHz, Ampl>0.1 Vpp
–45 dBc 1MHz~10 MHz, Ampl>0.1Vpp
–30 dBc 10MHz~320MHz, Ampl>0.1Vpp

Total harmonic distortion
< 0.1% (Ampl>1Vpp)DC~100 kHz
Square wave Characteristics



Rise/Fall Time
<15ns

Overshoot
<5%

Asymmetry
1% of period +5 ns

Variable duty Cycle
0.01% to 99.99%(limited by the current frequency setting)

Jitter
20ppm+500ps(4)
Ramp Characteristics




Linearity
< 0.1% of peak output

Variable Symmetry
0% to 100%
Pulse Characteristics



Frequency
1uHz~25MHz

Pulse Width
≧20nS(limited by the current frequency setting)

Variable duty Cycle
0.01%~99.99%(limited by the current frequency setting)

Overshoot
<5%

Jitter
20ppm +500ps(4)
Pulse Generator



Amplitude
1mVpp to 2.5 Vpp (into 50Ω)
2mVpp to 5 Vpp (open-circuit)

Offset
±1 Vpk ac +dc (into 50Ω)
±2Vpk ac +dc (Open circuit)

Frequency
1uHz~25MHz

Pulse Width
20nS~999.9ks(limited by the current frequency setting)

Variable duty Cycle
0.01%~99.99%(limited by the current frequency setting)

Leading and Trailing Edge Time(5)
10nS~20S(1ns resolution) (limited by the current frequency and pulse width settings)

Overshoot
<5%

Jitter
100ppm +500ps(4)
RF Generator


Arbitrary Functions




ARB function
Built-in

Sample Rate
200 MSa/s

Repetition Rate
100MHz

Waveform Length
16k points

Amplitude Resolution
14 bits

User-defined output section
From point 2~16384 (optional)

Jitter
20ppm +5ns
