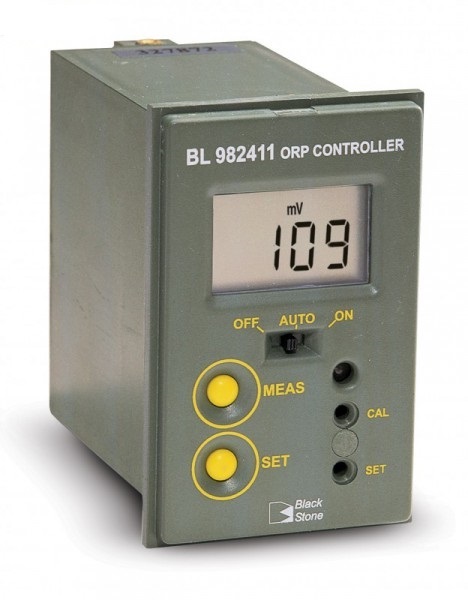

HANNA BL982411-0 ORP迷你型控制器,范围:0至1000 mV,12VDC

  • 制造商: HANNA
    Model: BL982411-0
    • 报价要求 报价要求
  • 4,187,700 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Hanna
Model:BL982411-0
Warranty:12 Months

Specifications
Range     0 to 1000 mV
Resolution     1 mV
Accuracy (@25°C/77°F)     ±5 mV
Calibration     manual, with CAL trimmer
Dosing Relay     maximum 2A (fuse protected), 250 Vac, 30 VDC
Dosing Selection     reducing or oxidizing, selectable on the back panel
contact open=reductant dosage=relay ON if measure > setpoint
contact closed=oxidant dosage=relay ON if measure < setpoint
Setpoint     adjustable, from 0 to 1000 mV
Overtime     adjustable, typically from 5 to approximately 30 minutes
Input Impedance     10¹² Ohm
Power Supply     BL982411-0: 12 VDC adapter (included);
BL982411-1: 115/230 VAC; 50/60Hz
Dimensions     83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’)
Weight     BL982411-0: 200 g (7.1 oz.);
BL982411-1: 300 g (10.6 oz.)
Ordering Information     BL982411-0 (12 VDC) and BL982411-1 (115V) are supplied with mounting brackets, transparent cover and instruction manua
