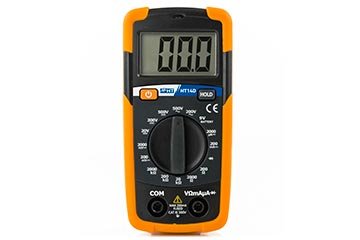

HT Instruments HT14D 袖珍型数字万用表

  • 制造商: HT Instruments
    Model: HT14D
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 731,700 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: HT Instruments

Item: HR00014D

Model: HT14D

Origin: China

Warranty: 12 months


DC Voltage:

200.0mV(200Vrms)/ 2000mV, 20.00V(500V DC/AC); ±(0.5%rdg+2dgt)

200.0V/ 500V ; 500V DC/AC; ±(0.5%rdg+4dgt)

AC voltage: 200.0V/ 500V; ±(1.2%rdg+10dgt); > 1MΩ; 500V DC/AC

DC current:

2000ΩA; ±(1.2%rdg+2dgt); Fast Fuse 200mA / 600V

200.0mA; ±(1.5%rdg+2dgt); Fast Fuse 200mA / 600V

Resistance: 200.0Ω- 200.0kΩ; ±(0.8%rdg+4dgt);  250Vrms < 15sec

2000kΩ, ±(1.5%rdg+2dgt), 250Vrms < 15sec

Battery Test:  9V; ±(1.2%rdg+2dgt); 250Vrms < 15sec

Display: LCD, 3 ½ dgt, 2000 points plus sign and decimal point ; Automatic polarity indication; “OL” overrange indication

Features: Data HOLD

Low battery indication: "BAT" appears when the battery voltage is low

Max altitude: 2000m

Pollution degree: 2

Insulation: double insulation

Power supply: 1x12V battery type MS21 / MN21; Protection fuse: fast 200mA/600V, 5x20mm

Dimensions: 105(L) x 50(W) x 25(H) mm

Weight (included battery): 100g


Accessories provided:

Pair of Leads KIT4000A

Batteries and user manual
