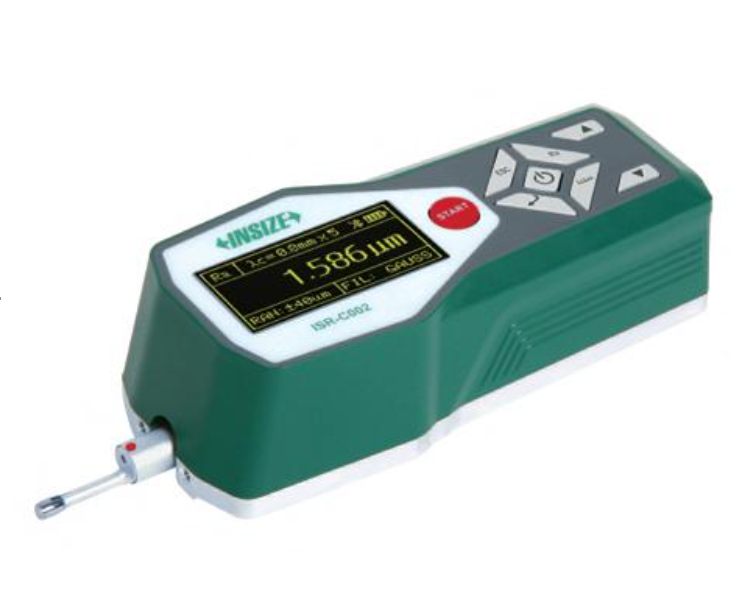

Insize ISR-C002 粗糙度仪

  • 制造商: INSIZE
    Model: ISR-C002
    保障: 12 month
    • 报价要求 报价要求
  • 25,338,875 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Insize

Model: ISR-C002

Warranty: 12 months

21 roughness parameters

Connected with printer via bluetooth

Can display roughness values, profile and curve

Memory of maximum 100 results

Automatic power off

Parameters:  Ra, Rq, Rv, Rp, Rm, Rt, RS,  Rsm, R3z, R3y, Rz, Rku, Rsk, Rmax, Rpc, Rk,

                     Rpc, Rpk, Rvk, Mr1, Mr2

Range: 160µm

Accuracy: ±3%

Resolution (Ra): 0.001µm

Probe type: inductive

Probe Stylus radius/ angle: 5µm/90 °

Probe stylus material: diamond

Measuring force: 4mN

Measuring unit: µm/µin

Cut off: 0.25/0.8/2.5mm

Numbers of cut-offs: 1-5

Traverse speed: 0.5mm/s, 1mm/s

Memory: 100 measurement results

Output: USB and bluetooth

Power: built-in rechargeable results

Dimension(L×W×H): 141x55x40mm

Weight: 440g
