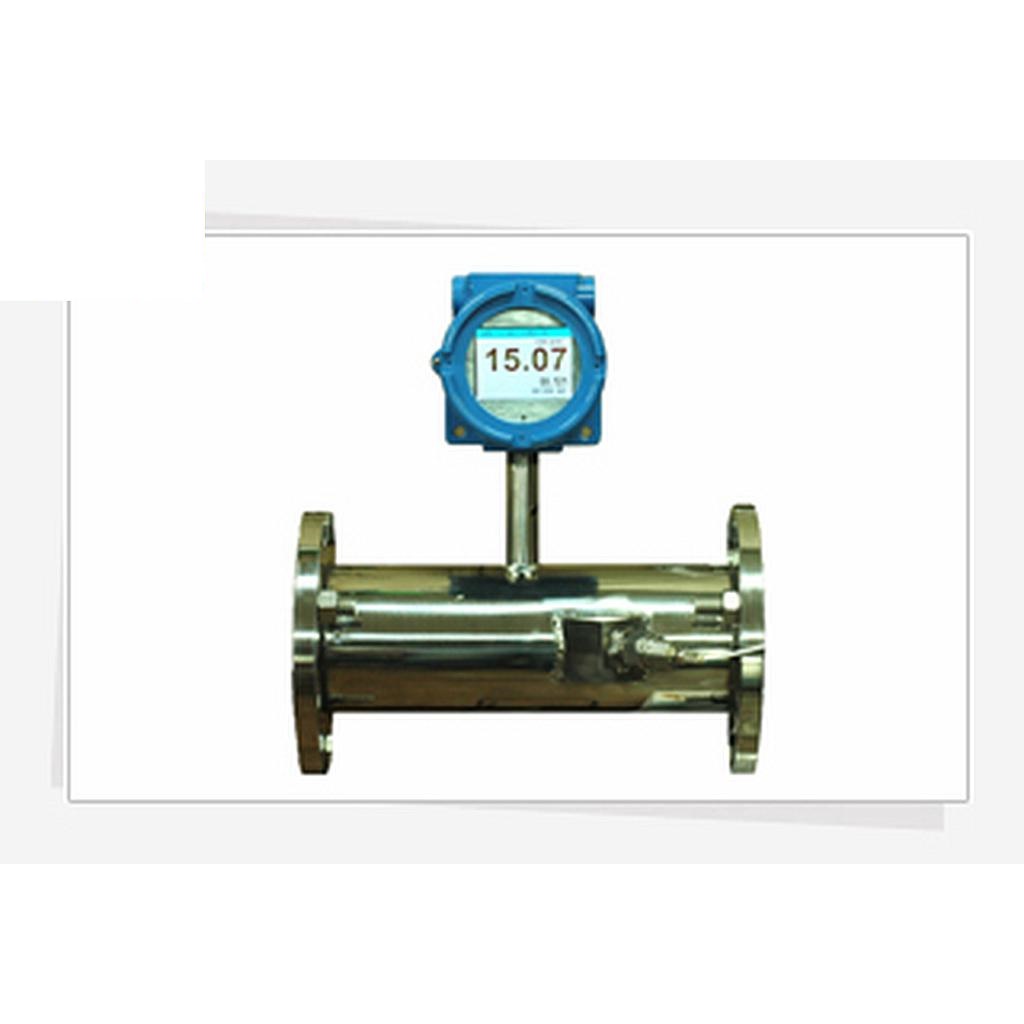

Jain Xonic 10GX 防爆超声波气体流量计(0.5%,±0.01~30 m / s)

Principle : Ultrasonic Transit-Time using DSP, Dual Path
Mode : AR (Anti-Round) Mode
Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux
Oscilloscope Function : signal shape on LCD
DSP Function
Power : 12-24DC
Measuring pipe : 50-2000mm pipe OD
Accuracy :  0.5%
Repeatability : 1.0%
Turn Down Ration : 1000:1
Velocity Range : ±0.01 ~ 30 m/s
Output : 4-20mADC, Ro le , RS-232C
Input : 4-20mADC (option)
Datalogger : 32 Mbytes
Operating Temp. : flow computer +20 ~ +60?; transducer -40 ~ +120?
Enclosure : NEMA 7 (IP67)

Details

datasheet

Ultrasonic Gas Flowemter Xonic 10GX


The flowmeter is used for air, O2, N2, Combustion Gas, etc, etc and measure flow as insertion installation with Explosion Proof enclosure. It use one pair transducer to measure ultrasonic transit-time difference, and use DSP technology to remove any noise . The flowmeter use cross-correlation and FFT technology and can measure any type of liquid that contains high air, solids, and big noise.



Xonic 10GX is consisted of

Flow Computer
  1ea
clamp-on type transducer
1pr
coaxial cable
1pr
Specification


1. Priciple : Ultrasonic Transit-Time using DSP, Single Path

2. Mode : AR (Anti-Round) Mode

3. Display : Large Color LCD (320x240 pixel), flow, total, signal shape, Aux

4. Oscilloscope Function : signal shape on LCD

5. DSP Function

6. Power : 12-24DC

7. Measuring pipe : 50~2000mm pipe OD

8. Accuracy : 0.5%

9. Repeatability : 1.0%

10. Turn Down Ration : 1000:1

11. Velocity Range : ±0.01 ~ 30 m/s

12. Output : 4-20mADC, Relay, RS-232C

13. Input : 4-20mADC (option)

14. Datalogger : 32 Mbytes

15. Operating Temp. : flow computer +20 ~ +60℃

16. transducer -40 ~ +120℃

17. Enclosure : NEMA 7 (IP67)

Main Function


1. NET Certified (NET 0006)

2. Patent 10-0532041, 10-0560364, 10-0780707

3. Oscilloscope Function
