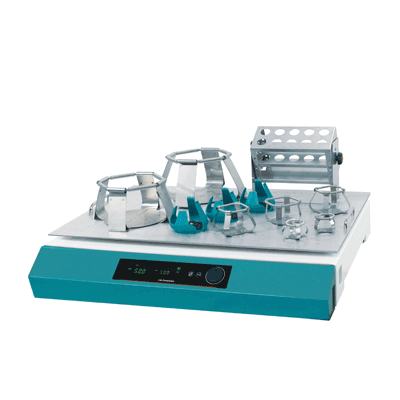

露天振动器Jeiotech OS-7100(一般,30~500rpm)

  • 制造商: JEIOTECH
    Model: OS-7100
    • 报价要求 报价要求
  • 67,727,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Jeiotech
Model: OS-7100
Cat. AAH3D1415K
Origin: Korea
Warranty: 12 months

Control system: PID feedback control
Display: VFD
Shaking system
- Motion type: Orbital
- Amplitude size (mm / inch, dia.): 25.4 / 1
- Speed range 2) (rpm): 30 to 500
- Accuracy: ±1% of set speed (≥100rpm) / ±1 (≤100rpm)
- Timer: 1 min. to 999 hr. 59 min.
Max. load (kg / Ibs)
10 / 22.0 at 500 rpm
25 / 55.1 at 400 rpm
Dimension
- Platform (W×D) (mm / inch): 755×520 / 29.6×20.5
- Body 1) (W×D×H) (mm/inch): 755x627x151 / 29.7x24.7x5.9
- Net weight (Kg / lbs): 117 / 257.9
Electrical requirements (230V, 50 / 60Hz): 0.4A
