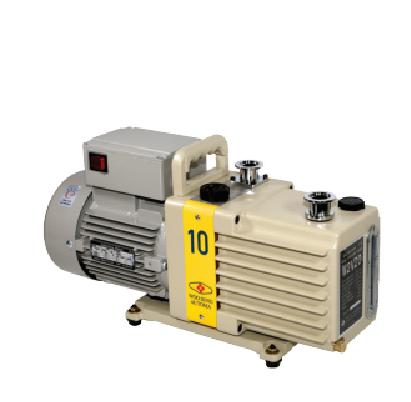

旋转真空泵Jeiotech W2V10(500L,100L / min)

  • 制造商: JEIOTECH
    Model: W2V10
    • 报价要求 报价要求
  • 39,550,500 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Jeiotech
Model: W2V10
Cat.BEH73205K
Origin: Korea
Warranty: 12 months

Pumping speed (L/min / gal/min): 100 / 26.4
Max. pressure
Gas ballast open 5X10-3 Torr (6.7 Pa)
Gas ballast closed : 1X10-3 Torr (1.3X10-1 Pa)
Motor power (W / Hp): 400 / 0.5
Motor speed (rpm): 1,700
Oil capacity (cc / L): 500 / 0.5
Inlet: Standard NW25
Nipple (Ø, mm): AL, Ø12
Exterior (WxLxH) (mm / inch) : 150x392x250 / 5.9x15.4x9.8
Net weight (kg / lbs) : 22.5 / 49.6
Electrical requirements: 230V, 50/60Hz

详细

Datasheet
