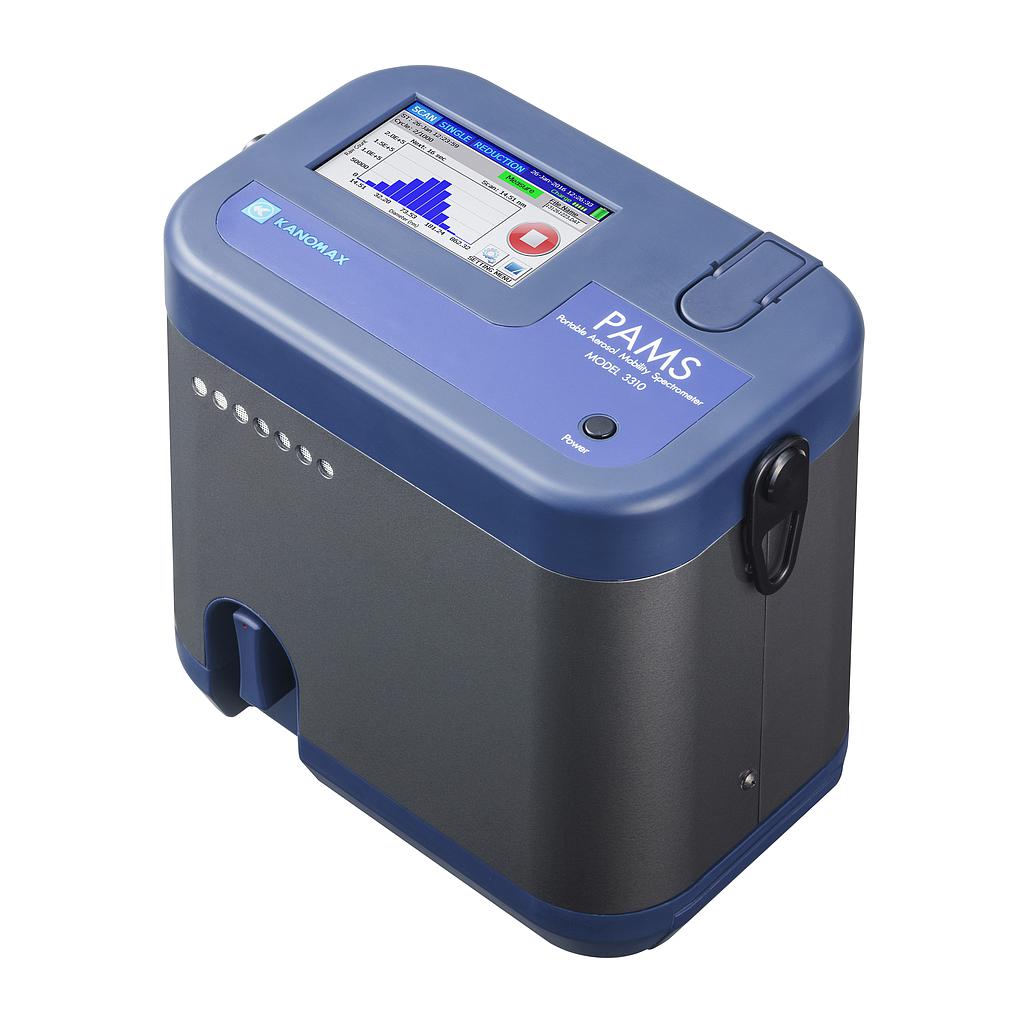

Kanomax Pams 粒子分析仪/ 便携式/ 计数器

  • 制造商: KANOMAX
    Model: Pams
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Kanomax

Model: Pams

Origin: Japan

Warranty: 12 months


- Measuring Modes:

Single size mode (single size concentration)

Scan mode (size distributions)

- Size Range:

0.2LPM: 14.5 to 863 nm

0.4LPM: 10 to 433 nm

- Scan Resolution:

0.2LPM: 14 channels

0.4LPM: 27 channels

- Scan Time:

0.2LPM: 42 sec to minutes for one scan

0.4LPM: 81 sec to minutes for one scan

-Concentration Range: 0 to 100,000 particles /cm3

- Flow Rate:

Inlet: 0.7 LPM

Sample: 0.05 LPM

- Bipolar Charger: Dual corona charger at 5 μA

- Condensing Fluid: Isopropyl alcohol

- Display: Color touchscreen

- Dimensions (WHD): 9.1 x 9.1 x 5.9 inch (23 cm x 23 cm x 15 cm)

- Weight: 9.9 lbs (4.5 kg )

详细

- Features:

Electrical mobility size spectrometer designed for portable, mobile, or handheld aerosol sampling applications

Provides number-weighted diameter distribution of aerosols over the entire submicrometer range (10 to 863nm) in one scan

Uses a non-radioactive bipolar aerosol charger to allow easy access to sampling sites with tight safety regulations

Bipolar charger significantly reduces measurement uncertainty of larger particles in the submicrometer range

Can be used in two modes: Single diameter count mode: to get a total count within a narrow size range or Size distribution mode: to get an automated size distribution measurement over desired size range or size resolution

Stand-alone, battery-operated instrument; no external computer needed.

Weighs only 4.5 kg and measures 23 x 23 x 15 cm.

- Applications:

Personal Nanoparticle/Aerosol Exposure Measurement

Workplace protection factor measurement of respirators

Atmospheric process studies

Air pollution and air quality measurements

Combustion and engine exhaust emission measurements

Filtration studies

Inhalation toxicology studies

Indoor air quality studies

Datasheet
