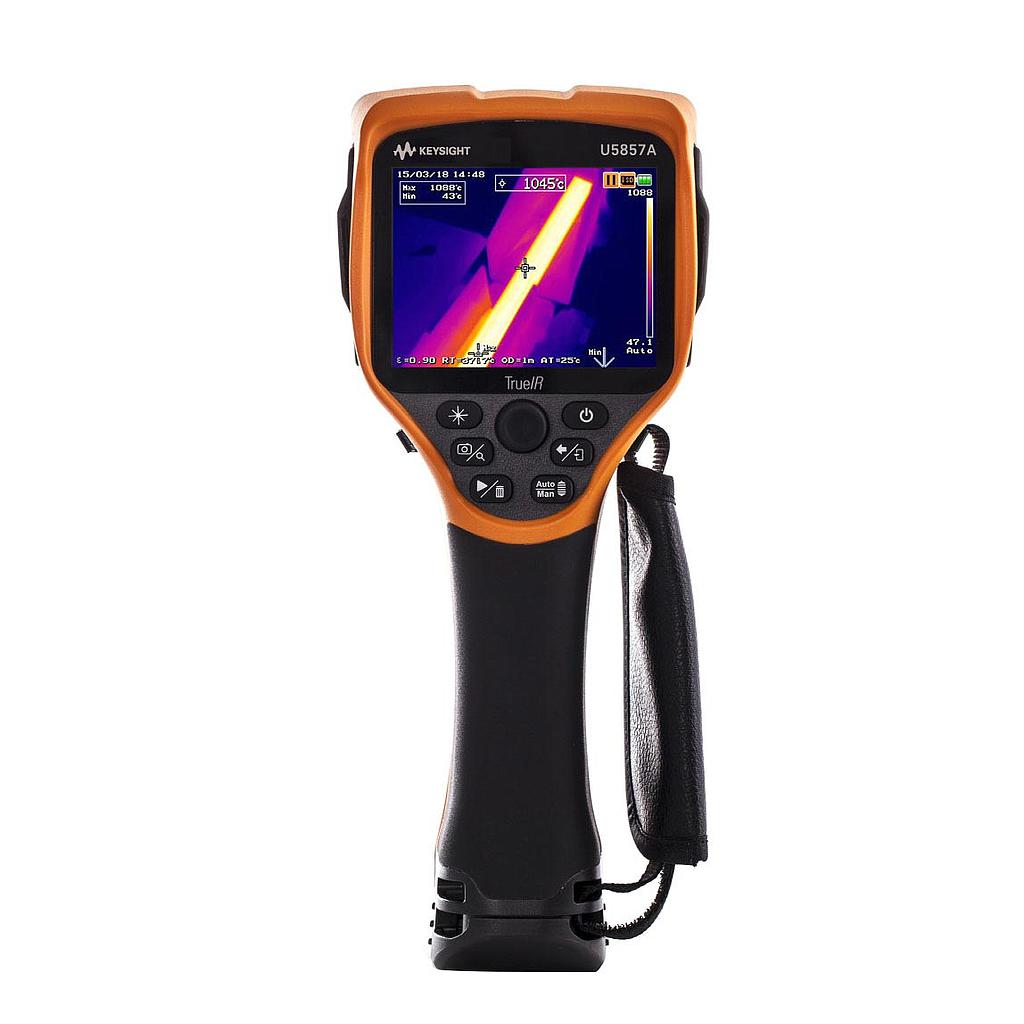

KEYSIGHT U5857A TrueIR 热像仪, 1200 ° C

  • 制造商: KEYSIGHT
    Model: U5857A
    来源: Malaysia
    保障: 12 month
    • 报价要求 报价要求
  • 138,378,240 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: KEYSIGHT
Model :
U5857A
Made in Malaysia
Warranty: 12 months

Temperature measurement range: –20 ~ 1200 °C

                          Range 1: –20 to 120 °C

                          Range 2: 0 to 350 °C

                          Range 3: 250 to 1200 °C

Thermal sensitivity:

                          Range 1: 0.07 °C (at 30 °C)

                          Range 2: 0.1 °C (at 30 °C)

                          Range 3: 0.5 °C (at 250 °C)

Accuracy: ± 2 °C or ± 2% at 0 ~ 40 °C

Detector resolution: 160 × 120

Fine resolution (in-camera): 320 × 240 (IR pixels)

Spectral range: 8 to 14 μm

Frame rate: 9 Hz

Camera mode: IR image, visible image, picture in picture, blend

Storage device: Supports up to 32 GB SDHC memory card with class 4 and above

I/O: USB 2.0 mass storage NTSC/PAL via video RCA cable

Display: 3.5” TFT

Visible camera: 3.1 MP

Stream, record and playback video up to 8 frames/s (via TrueIR Analysis and Reporting Tool)

Power supply: Power adapter Line voltage range: 50/60 Hz, 100 – 240 VAC (Auto/Universal voltage), 1.2A. Output voltage: 12 VDC, 3 A

IP rating: IP 54

Weight: 0.746 kg (with battery

Dimensions (W × H × D): 95 × 250 × 85 mm



Included accessories: Power adapter with power cord, Rechargeable Li-Ion battery, SD memory card, hard carrying case, Quick start guide, Certificate of calibration, USB standard-A to mini type-B interface cable 1 m.

Chi tiết

View Datasheeet
