Warrenty: 12 months
Application: All products requiring constant temperature and humidity control Size : 500(W)*500(D)*600(H) / IN
900(W)*760(D)*1280(H) / OUT
※ Subject to change to meet the order specification
Cooling System : Low Temperature (Dual Cool)
High Temperature (Single Cool0
Temperature Range : -40℃~150℃ ±0.5℃
Humidity Range : 30 ~ 98 % ± 2%
Control : PID Control
Temperature & Humidity Controller : Program Digital Auto Turning Controller
Touch Screen Type : TEMP 2,500
Power : AC380 / 220V, 50 ~ 60Hz selectable

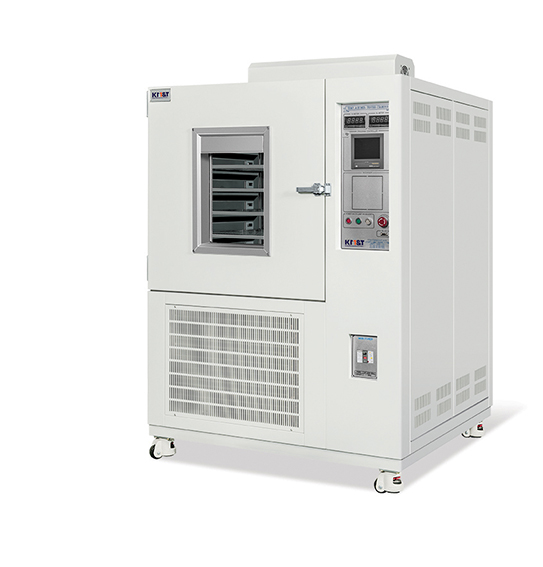

The tester is to compare before and after testing by imposing temperature, humidity or
other environmental changes to the product or specimen to be tested.
This Test aims to identify and systemize various kinds of effects in the physical and
chemical conditions that may occur during seasonal changes and transportation and applying them to products.
▪ The temperature and humidity control method is adapted with PID Auto Tuning,
enabling it to control with precise temperature and humidty as well as unmanned operation.
▪ The temperature and humidity conrol method isadapted with PID Auto Tuning,
enabling it to control with precise temperature and humidity as well as unmanned operation.
