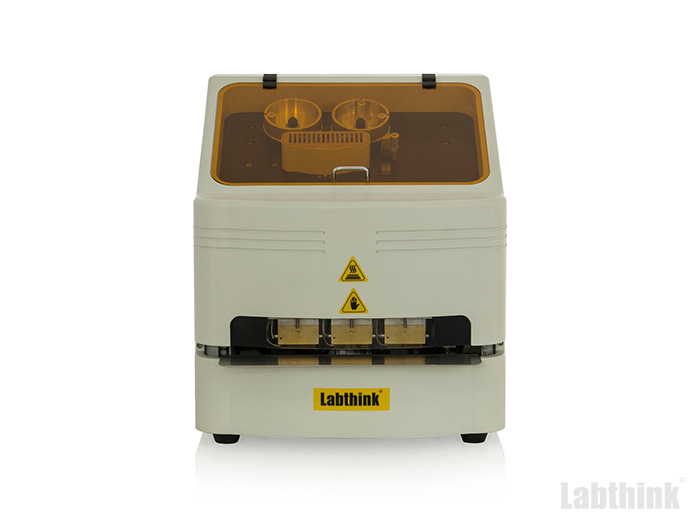

Labthink i-Thermotek 2400 热封与热粘性能测试仪

  • 制造商: Labthink
    Model: i-Thermotek 2400
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Labthink

Model:  i-Thermotek 2400

Warranty: 12 months


Heat Seal Test:

- Sealing Temperature: Room temperature~250 °C

- Sealing Pressure: 0.05 MPa~0.7 MPa

- Dwell Time: ≤99.9s

- Resolution: ±0.1°C

- Accuracy: ±2°C

- Temperature Gradient: ≤20°C

- Sealing Area: 55mm×10mm

- Number of Sealing Jaws: 3+1Note1

Hot Tack Test :

- Sealing Temperature: Room Temperature~250°C

- Resolution: ±0.1°C

- Accuracy: ±1°C

- Dwell Time (Heat Seal): ≤99.9s

- Dwell Time (Hot Tack): ≤20s

- Sealing Pressure: 0.05~0.7MPa

- Number of Sealing Jaws: 1+1Note2

- Capacity Range: 0~50N (Optional)

- Test Accuracy: 1% FS

- Resolution: 0.1N

- Specimen Width: 15 mm or 25 mm or 25.4 mm

Heat Seal Strength:

- Capacity Range: 0~50N (Optional)

- Test Accuracy: 1% FS

- Resolution: 0.1N

- Specimen Width: 15 mm or 25 mm or 25.4 mm

- Speed: 200mm/min, 250mm/min, 300mm/min

(Customization is available)

- Stroke: 78.5 mm

O

Gas Supply: Air (Outside of supply scope)

Gas Supply Pressure: 0.05~0.7MPa

Port Size: Φ6 mm PU Tubing

Dimension: 500 mm (L) × 580 mm (W) × 575 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60HzNote3

Net Weight: 50 kg

Configurations

- Standard: Instrument (Including wireless data interface), Embedded Software, Standard LCD Monitor, Keyboard, Mouse, Calibration Frame, Pedal Switch, Sample Cutter and Valve tubing Set, Printer

- Optional: Strip Sample Cutter, Unheated Sealing Jaw, Air Compressor and Desiccant

Chi tiết

Datasheet


Catalog
