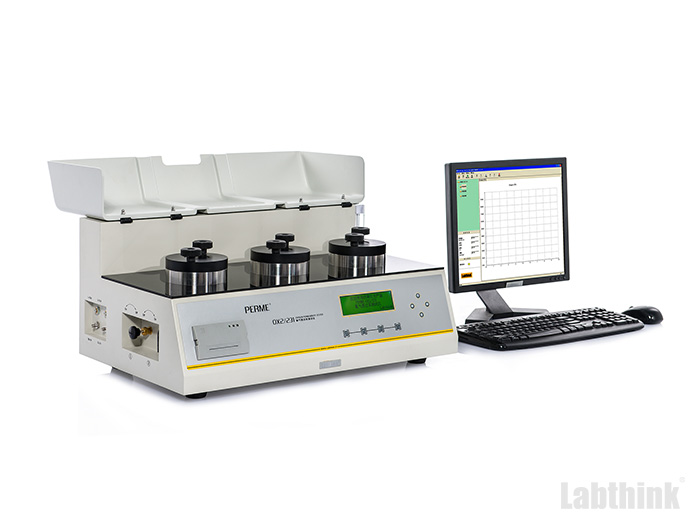

Labthink OX2 / 231透氧性测试仪

  • 制造商: Labthink
    Model: OX2/231
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacture: Labthink

Model:  OX2/231

Warranty: 12 months


Test Range:

- Film Test: 0.01 ~ 1000 cm3/m2•d (standard); 0.1 ~ 10,000 cm3/m2•d (optional)

- Package Test: 0.0001 ~ 10 cm3/pkg•d (standard)

Number of Specimens: 1 ~ 3

Resolution:

- Film Test: 0.01 cm3/m2•d

- 0.0001 cm3/pkg•d

Temperature Range:

- Film Test: 15°C ~ 55°C (optional)

- Package Test: /

Temperature Accuracy:

- Film Test: ±0.1°C

- Package Test: /

Humidity Range: 0%RH, 15%RH ~ 90%RH, 100%RH

(optional)

Humidity Accuracy: ±1%RH

Test Gas: O2 and air (outside of supply scope)

Test Area:

- Film Test: 50 cm2

- Package Test: /

Thickness:

- Film Test: ≤3 mm (customization is available for other thickness)

- Package Test: /

Specimen Size:

Film Test: 108 mm x 108 mm

- Package Test:

+ Test in 100% O2: Specimen should be smaller than Ф120 mm and lower than 360 mm

+ Test in the Air: No size limitation

+ Bottles: the inner diameter should be bigger than Ф8 mm, outer diameter should be smaller than Ф42 mm (Standard)

+ Bags or Boxes: Supported by accessories

Carrier Gas: High purity nitrogen with more than 99.999% concentration

(outside of supply scope)

Gas Supply Pressure: ≥ 0.28 MPa

Port Size: 1/8 inch copper tubing

Instrument Dimension:

- Film Test: 670 mm (L) x 410 mm (W) x 310 mm (H)

- Package Test: 670 mm (L) x 410 mm (W) x 630 mm (H)

Power Supply: 220VAC 50Hz / 120VAC 60Hz

Net Weight:

- Film Test: 48 kg

- Package Test: 50 kg
